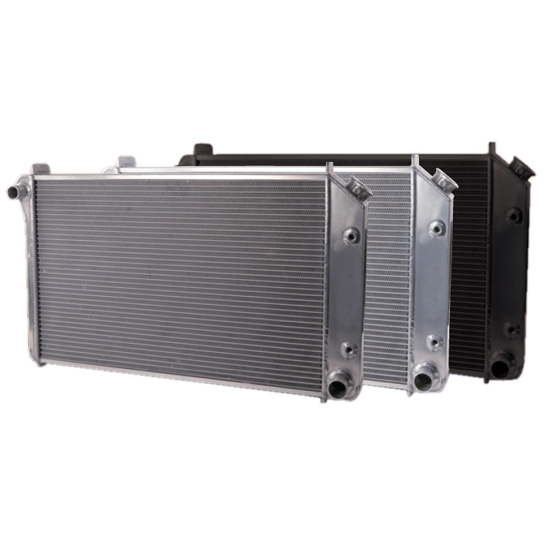

AFCO Direct Fit 1978-88 GM Radiators

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Dual
Inlet Location:
Upper Left
Outlet Location:
Lower Right
Finish:
-
Radiator Style:
Single Pass
Transmission Cooler:
-
Shroud:
-
Overall Height:
18.63
Overall Width:
31.50
Overall Thickness:
3.00
Inlet Size:
1.50
Core Height:
17.25
Core Width:
26.50
Core Thickness:
2.25
Tube Size:
1.00
Color:
Black
Cooling Fan:
-
Shroud finish:
-
AFCO Direct Fit 1978-88 GM Radiators
AFCO Direct Fit 1978-88 GM Radiators
AFCO Direct Fit 1978-88 GM Radiators
VIDEO
AFCO Direct Fit 1978-88 GM Radiators

Click image to enlarge

Details

Reviews (1)

Q & A (0)

What's in the Box

Info

With AFCO Direct Fit aluminum radiators, you can use the same tools to install your new radiator as you did to remove the old one. They are 100% TIG welded, 100% pressure tested and use no epoxy or sealers. These radiators were designed for the rigors of racing, but we added the mounts to allow you to use their superior design on the street.  Be sure to check the Application tab for vehicle fitment!

  • Brass Drain Cock Fitting:  1/4" NPT (included)
  • Transmission Cooler Ports:  1/4" NPT
  • Filler Neck Hose Barb:  1/8" Straight (included)
  • 100% aluminum construction
  • Furnace brazed core - 2 rows of 1" tubes
  • Tanks are made of .080” aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Billet filler necks feature screw-in bleed – won't crack or leak with age
  • OEM size inlets/outlets & petcocks
  • Auto trans fittings in factory location

1978-88 GM Radiator Installation Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

Application

Fits:

  • 1978-87 Buick Regal
  • 1978-88 Cutlass/442/Hurst Olds
  • 1978-88 Monte Carlo
  • 1978-87 Pontiac Grand Prix
  • 1978-81 Pontiac Lemans
  • 1980-86 Impala
  • 1980-86 Caprice

Notes

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished


Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Specs


Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Steve's monte
Verified Purchaser
Omaha Ne

Almost 5 star

September 09, 2015
I used it in a 85 montecarlo ss. Tank mounts slightly wider. Ad specs said 1.5 inlet 1.75 outlet. It has 1.25 inlet and 1.5 outlet. Although very nice polished raditor. Looks great with polished shroud and fans.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
