AFCO Direct Fit 1973-1991 GM Pickup Aluminum Radiators

SAME DAY SHIPPING!

Specs
Material Type:
Aluminum
Overall Height:
20.75
Overall Width:
34.19
Transmission Cooler:
-
Tube Style:
Crossflow
Sold in Quantity:
Each
Overall Thickness:
3.19
Row Quantity:
Dual
Finish:
-
Inlet Location:
Upper Left
Inlet Size:
1.50
Outlet Location:
Lower Right
Outlet Size:
1.75
Core Height:
19.00
Core Width:
28.50
Core Thickness:
2.25
Tube Size:
1.00
Shroud:
-
Radiator Style:
Single Pass
Cooling Fan:
-
Shroud finish:
-
Color:
-

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

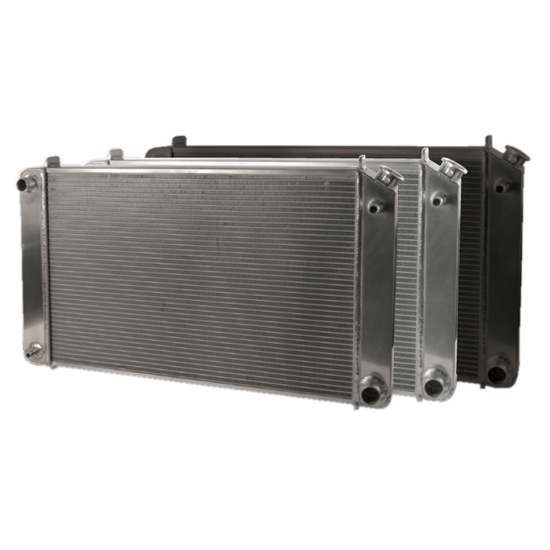

Cooling your 2WD or 4WD truck is made easy with an AFCO Direct Fit aluminum radiator. The 28" core provides more surface area and cooling capacity than the competition. Plus, this radiator is a bolt-in fit allowing the use of factory mounts and shrouds making installation a breeze. Fits 1973-1987 pickup trucks and 1973-1991 Blazer/Suburban with factory OEM 28.38" x 19.5" core. (All full-size 1/2-ton, 3/4-ton and 1-ton truck chassis).

  • Built-in mounting brackets w/ pre-drilled holes
  • Factory fan shroud provisions
  • Inlets and outlets are factory-style and in stock locations
  • Billet filler neck offers strength and higher quality appearance over stamped
  • Inlets and outlets are positioned correctly for ease of flow
  • 100% aluminum construction (no epoxy)
  • Furnace brazed core - 2 rows of 1" tubes
  • TIG welded by skilled craftsmen in the USA

1973-91 GM Pickup Radiator Installation Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Notes

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Specs


Item Details

*Please see Notes tab for index abbreviations.*
Heater Return Nipple: 5/8"
Brass Drain Cock Fitting: 1/4" NPT (included)
Transmission Cooler Ports: 1/4" NPT
Filler Neck Hose Barb: 1/8" Straight (included)
