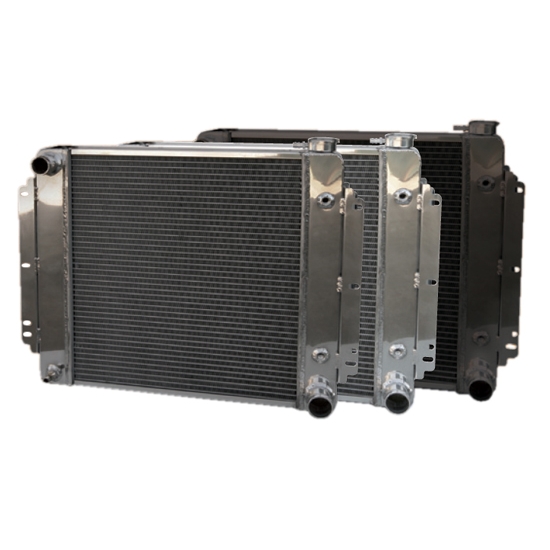

AFCO Direct Fit 1962-67 Chevy II Nova Radiators, Crossflow

Free Shipping Free Shipping
AFCO Direct Fit 1962-67 Chevy II Nova Radiators, Crossflow
AFCO Direct Fit 1962-67 Chevy II Nova Radiators, Crossflow
AFCO Direct Fit 1962-67 Chevy II Nova Radiators, Crossflow
VIDEO
AFCO Direct Fit 1962-67 Chevy II Nova Radiators, Crossflow

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

The '62-'67 Nova continues to be the choice of many car builders today for their ability to achieve high horsepower-to-weight ratios. AFCO designed these cross-flow conversion radiators for increased cooling and easier engine swaps. It bolts into the stock mounting hole locations for simple installation. No cutting or drilling is required.

  • Built-in mounting brackets w/ pre-drilled holes
  • Factory fan shroud provisions
  • Inlets and outlets are factory-style and in stock locations
  • Billet filler neck offers strength and higher quality appearance over stamped
  • Inlets and outlets are positioned correctly for ease of flow
  • 100% aluminum construction (no epoxy)
  • Furnace brazed core - 2 rows of 1" tubes
  • TIG welded by skilled craftsmen in the USA

Note: The 6-Cylinder shroud will not fit with the bracket assembly on this radiator.

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

Notes

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished


Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Specs

  • Overall Height:  20"
  • Overall Width:  23-1/4"
  • Brackets for shroud and mount to cradle are 25" on center holes
  • Core Thickness:  2-1/4"
  • Inlet Diameter:  1.5"
  • Outlet Diameter:  1.75"
  • Brass Drain Cock Fitting:  1/4" NPT (included)
  • Transmission Cooler Ports:  1/4" NPT
  • Filler Neck Hose Barb:  1/8" Straight (included)

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

does this come with the wiring needed for the fans

sb2fast
Las Vegas, NV, USA
January 06, 2013

does this come with the wiring needed for the fans

Answers

January 07, 2013
Jason
The fans have the pigtail for connection to the customers harness or we have an adjustable fan thermostat from Afco under part number 10680199 that could be used. There is a pre made harness in the works that has the protective shielding such as an OEM harness and should be available by mid summer.
