AFCO 10456 Chromoly Heim Rod End, 5/8-18 RH Male

Specs
Sold in Quantity:
Each
Threads:
RH Male
Material Type:
Chromoly
Thread Pitch:
5/8-18
MFG. Part #:
10456
Garage Sale:
No
Thread Length:
2.625

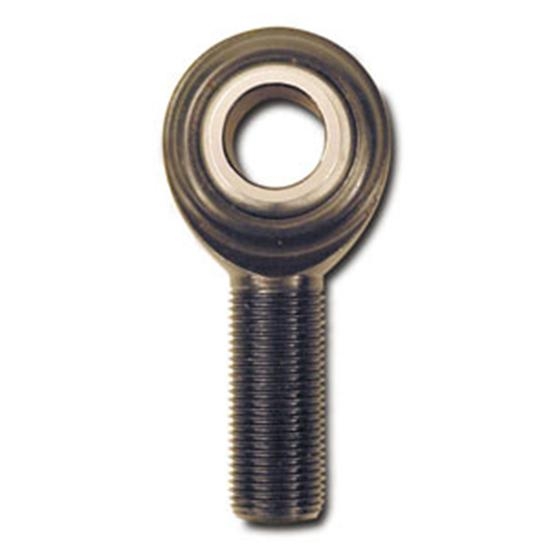

AFCO 10456 Chromoly Heim Rod End, 5/8-18 RH Male

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

  • Chromoly body - 2 piece design
  • Designed for heavy duty applications
  • Rough conditions steering/offroad
  • Ball - 52100 steel hard chrome plated
  • Race - N/A
  • Body - 4130 chromoly
  • Max Static Load - 18,000 lbs.

Item Details

Bore: 5/8"
Shank: 5/8"

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

what is the length of the tread?

ingo
October 17, 2013

what is the length of the tread?

Answers

October 17, 2013
Jason
The thread length on this 5/8-18 male Afco chromoly heim is 1.625". Length from center of ball to end of shank is 2.625"
