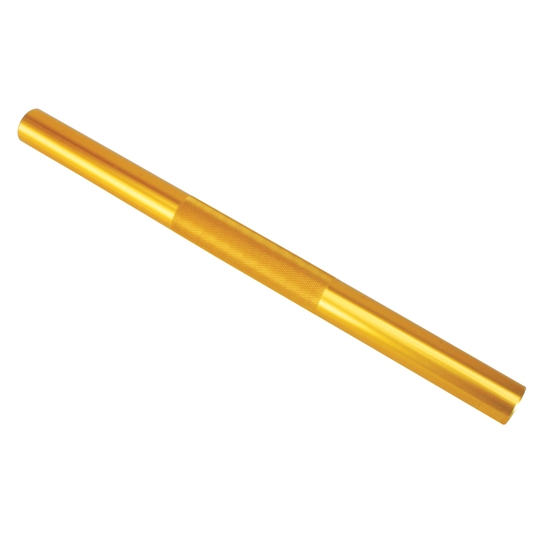

AFCO Aluminum Tube, 17 Inch Long, 1 Inch O.D. (3/4) Inch

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Thread Pitch:
3/4 in.
MFG. Part #:
20056
Overall Length:
17.00
AFCO Aluminum Tube, 17 Inch Long, 1 Inch O.D. (3/4) Inch
AFCO Aluminum Tube, 17 Inch Long, 1 Inch O.D. (3/4) Inch
AFCO Aluminum Tube, 17 Inch Long, 1 Inch O.D. (3/4) Inch
AFCO Aluminum Tube, 17 Inch Long, 1 Inch O.D. (3/4) Inch

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

Insist on 6061-T6 drawn tubing for strength, durability, and precise fit.  Extruded tubing looks similar, but it is not as strong or durable.  Extruded parts are prone to failure, while drawn parts keep performing.  Drawn material offers the same strength as hex without the additional weight.

  •  2-1/4” of tapped thread on each end.

Tech Tip:  Tube length will need to be 4" shorter than eye to eye working length.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 2 answers

2 answers

how strong are these? how strong are these bars can I use this bar as a traction bar? or panhard?

leorace1
January 20, 2015

how strong are these? how strong are these bars can I use this bar as a traction bar? or panhard?

Answers

March 12, 2015
JAWs
I use these as the 4-link bars on the rear of a dirt late model and hooking the steering rack to the spindle, but they're 5/8 instead. As a 4-bar set up, the lock nut is a great "stop", and the bar is always being compressed. As a panhard bar, there will be some pull and compression...I probably would use a real purpose made panhard bar.
January 21, 2015
EricM
These tubes are 1" OD and 11/16" ID with 3/4" - 16 threads. With the large OD of this tube they are still very strong even though they are made of aluminum. The application has everything to do with the use of a tube like this. A traction bar or panhard bar for a 8,000 lb 1 ton truck is a completely different animal as compared to a traction bar or panhard bar for a Vega. These tubes are used extensively on the rear suspension of circle track cars but the applications where they are useful are endless.
