AFCO 80199 Adjustable Electric Fan Thermostat

SAME DAY SHIPPING! Order within the next 14 hours 5 minutes and receive same day shipping

Specs
Sold in Quantity:
Each
Thread Pitch:
3/8" NPT
MFG. Part #:
80199
Notes
Includes wiring harness, temperature probe, inline fuse, and 30 Amp relay.

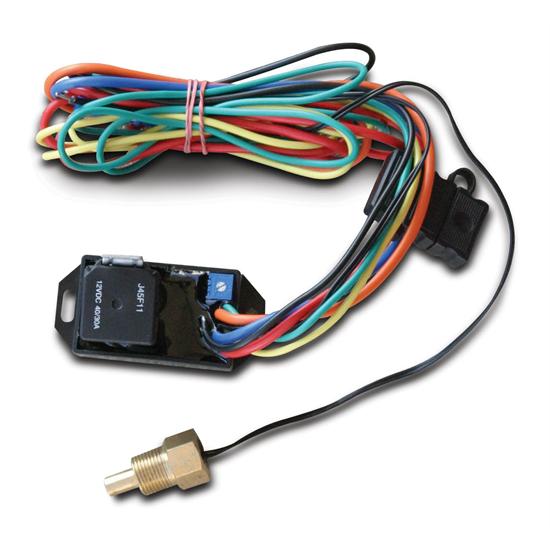

AFCO 80199 Adjustable Electric Fan Thermostat
AFCO 80199 Adjustable Electric Fan Thermostat

Click image to enlarge

Speeday Motors Logo
X
AFCO 80199 Adjustable Electric Fan Thermostat

Details

Reviews

Q & A

What's in the Box

Externally adjustable fan switch with an activation temperature of 150°-240° F allows you to custom set your fan activation. Thermal fan switch will operate up to two fans to simplify multi-fan operation. Radiator fan switch may also be wired to an AC-equipped car to operate the fan(s) anytime the AC is switched on to keep the AC operating cold.

  • 30 Amp relay included
  • ATC (blade-style) inline fuse
  • 3/8" male NPT temperature probe

106-80199 Instructions (PDF)
