AFCO 85242 Mechanical Water Temperature Gauge

Specs
Sold in Quantity:
Each
Gauge Type:
Mechanical
Bezel Finish:
Black Paint
Lettering Color:
White
Needle Color:
Red
Gauge Face:
Black
Temp. Range:
100-265 degree gauge measurement range.
MFG. Part #:
85242
Lighted:
Yes
Centerline of Holes:
2.12
Tube Length:
72.00
Overall Diameter:
2.79
Stud Length:
.88
Stud Diameter:
.19
Depth:
2.78
Body Length:
1.20
Body Diameter:
2.58

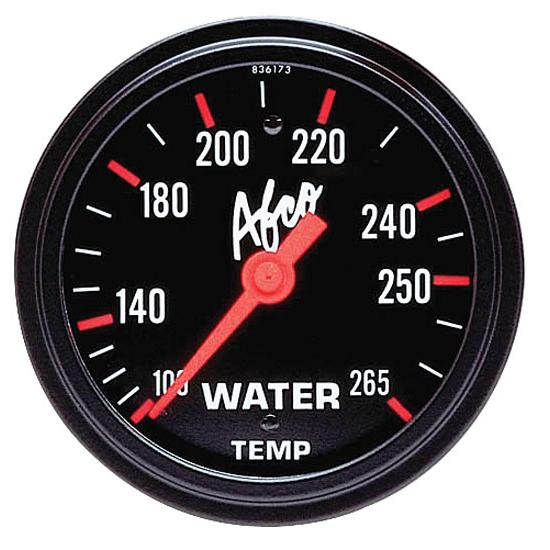

AFCO 85242 Mechanical Water Temperature Gauge

Click image to enlarge

Details

Reviews (2)

Q & A (0)

What's in the Box

Info

Lightweight 2-5/8" AFCO gauges feature black bezel and black backlit face which makes these gauges easy to read. Also included with the gauge is a mounting bracket with all the necessary hardware to complete.

  • 2-5/8" gauge 100-265° F
  • 72" Capillary tube
  • 1/2" and 3/8" NPT adapters
  • Firewall grommet
  • Mounting bracket and hardware


For add-on warning light, see 106-85192.
