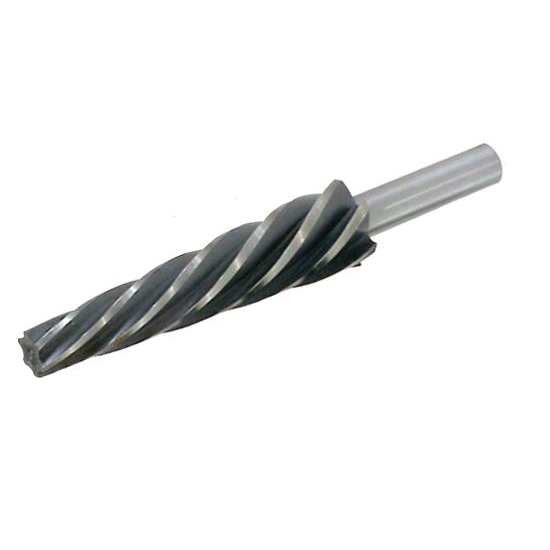

AFCO 80770 Tapered Ball Joint Reamer, 7 Degree

Free Shipping Free Shipping
AFCO 80770 Tapered Ball Joint Reamer, 7 Degree
AFCO 80770 Tapered Ball Joint Reamer, 7 Degree
AFCO 80770 Tapered Ball Joint Reamer, 7 Degree

Click image to enlarge

Details

Reviews (2)

Q & A (2)

What's in the Box

Info

Tapered reamers for proper fitting of ball joints to spindles, tie rod ends to spindles, etc. These have 1/2" shank. The 1-1/2" per foot reamer, also known as a 7° tapered reamer, works with Speedway ball joints 917-20031 K6024, 917-20032 K6136, and 910-34323 K772.

Measures a little less than 1/2" at the small end and 1" at the big end.

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Bobbob
Verified Purchaser
CA

The AFCO 80770 works well.

April 21, 2014
I cut the original round stock under size in the lath, then welded the mount to the bracket. The bracket was to large to swing in the lath, so I used the AFCO 80770 to kiss the mount and bring it out to the finished size. This removes the distortion caused by welding. If you don't have a lath, you could drill the hole in the mount, weld it to the bracket, then ream to the finished size. Use cutting oil while reaming.
Pros:
  • with care will last a long time
Cons:
  • no provision for hand tools
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Woodypecker

seven degree reamer

September 03, 2013
very sharp and cuts quickly. I used it to cut a pitman arm half way through from the back to make it reversible. I am sure it will work well to mount tie rod ends in bungs.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

What are the min and max size for this reamer? Taper length? Over all length? Will it fit a 1/2 chuck?

Marilyn
Dallas, Tx
February 12, 2012

What are the min and max size for this reamer? Taper length? Over all length? Will it fit a 1/2 chuck?

Answers

February 14, 2012
Jason

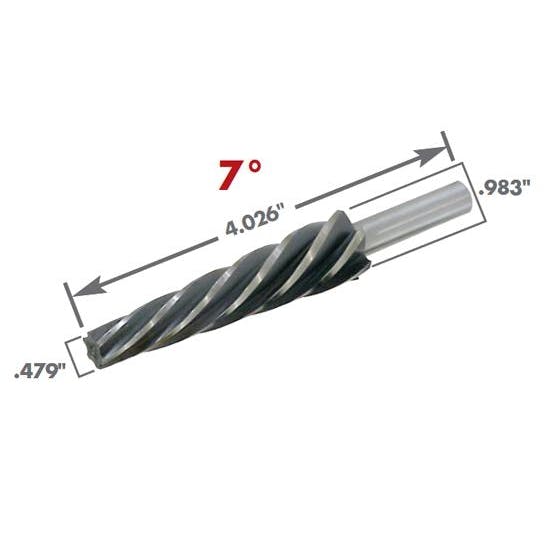

This reamer is 6" over all in length, has a .496" shank, 4.02" taper length, .983" max and .479" minimum
1 answers

What are the min and max size for this reamer? Taper length? Over all length? Will it fit a 1/2 chuck?

October 08, 2012

What are the min and max size for this reamer? Taper length? Over all length? Will it fit a 1/2 chuck?

Answers

October 08, 2012
Jason
This reamer is 6" over all in length, has a .496" shank, 4.02" taper length, .983" max and .479" minimum
Page 1 of 1
