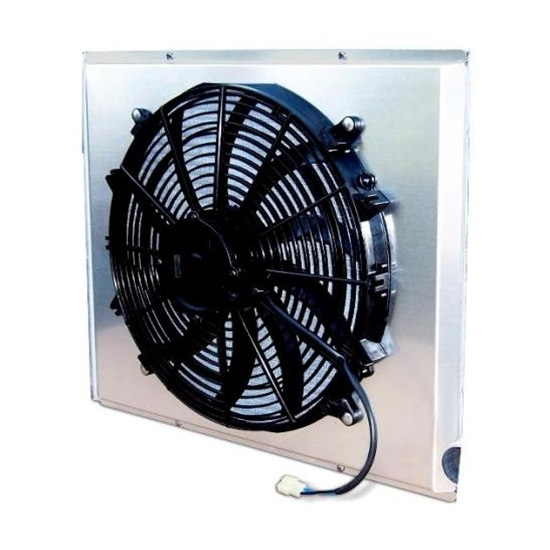

AFCO 80406FAN 2170 CFM Fan/Shroud Assembly for GM/Mopar Radiators

SAME DAY SHIPPING!

Specs
Material Type:
Aluminum
Overall Height:
22.25
Overall Width:
18.50
Sold in Quantity:
Each
Finish:
Natural
Blade Count:
10
Reversable:
Yes
Voltage:
12.00
Depth:
3.88
Material Thickness:
.08
CFM:
2170
Cooling Fan:
Single
MFG. Part #:
80406FAN
Rotation:
Clockwise
Blade Material:
Plastic
Fan Diameter:
15.00
Cooling Fan Type:
Pull
Garage Sale:
No

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

Single 16" S-Blade Fan, 17.7 Amp for 10680101NP/FNP, 10680103NP/FNP, 10680103NPZ, and 10680103FNPZ.

This fan/shroud assembly measures app. 4-1/8" from front-to-back at the center of the motor.  The motor is app 5" in diameter.  Just beyond the motor, the depth is app.1-3/4".  At the outer edge of the fan, the depth is app. 1-3/8".  The depth at the outer edge of the shroud is app. 3/4".

Instructions (PDF)

Learn more about how radiators work, the importance of using a fan and shroud, and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Single 16" S-Blade Fan, 17.7 Amp
for 10680101NP/FNP and 10680103NP/FNP
