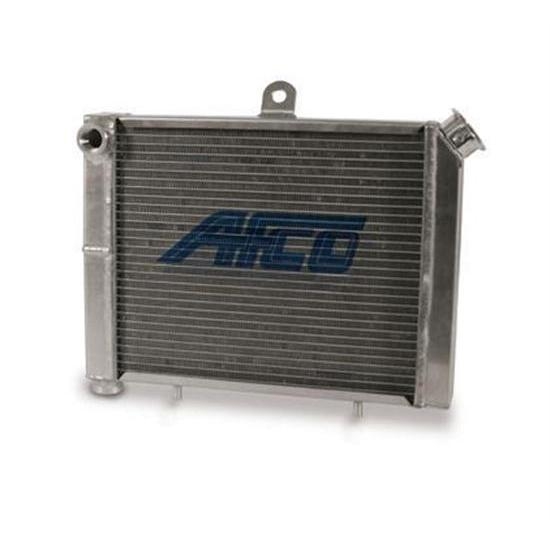

AFCO 80205 Micro/Mini/Midget 17x12 Cage Mount Double Pass Radiator

Price:$264.99
80205 - AFCO Cage Mount Radiator
Price:
$264.99
EA
In Stock
Item #:
10680205
Item Details:
17" x 12" Double Pass w/ NPT
AFCO 80205 Micro/Mini/Midget 17x12 Cage Mount Double Pass Radiator
Click image to enlarge Click image to enlarge
No video at this time.

  • 360° TIG-welded baffle for a true double-pass design = no fluid bypass
  • 18% more coolant capacity than the competition for the ultimate in cooling efficiency
  • The best radiator value in the open wheel market

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

  • 10680205
    MFG. Part #
    80205
    Overall Width
    16.880"
    Overall Height
    12.000"
    Overall Thickness
    2.000"
    Core Width
    13.500" (13 1/2")
    Core Height
    11.750" (11 3/4")
    Core Thickness
    1.000"
    Filler Neck Height
    1.000"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Left
    Tube Style
    Crossflow
    Radiator Style
    Double Pass
    Row Quantity
    Single
    Transmission Cooler
    No
    Material Type
    Aluminum
    Finish
    Natural
    Sold in Quantity
    Each
    Notes
    Inlet and outlet fittings are both 3/4" NPT. 2.25" long mounting pins at the bottom centered at 8.50"
