AFCO 80185NDP-16 Dirt Late Model Lightweight Double Pass Radiator

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Outlet Location:
Lower Right
Finish:
Natural
Inlet Location:
Upper Right
Radiator Style:
Double Pass
Transmission Cooler:
No
Shroud:
No
Overall Height:
20
Overall Thickness:
2
Outlet Size:
1.75
Fan Included:
No
Overall Width:
27.5
Core Height:
19
Core Thickness:
1.5
Inlet Fitting:
-16 AN Male
Core Width:
24
MFG. Part #:
80185NDP-16

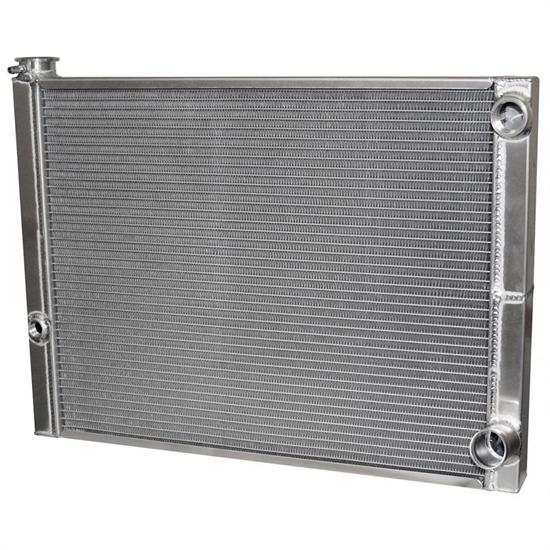

AFCO 80185NDP-16 Dirt Late Model Lightweight Double Pass Radiator
AFCO 80185NDP-16 Dirt Late Model Lightweight Double Pass Radiator
AFCO 80185NDP-16 Dirt Late Model Lightweight Double Pass Radiator

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCO Racing is proud to announce the new series of 19” x 27-1/2” lightweight double pass radiators. This is the easiest and most cost effective way to shave as much as 10 pounds off the front of your dirt Late Model, allowing you to concentrate ballast and improve handling. The radiator features a new 1.5” thick core for improved air-flow. These race proven lightweight radiators fit like a standard radiator and installation is simple with no major modifications needed for mounting. All AFCO Radiators are 100% TIG-welded with no epoxy used and are 100% pressure tested.

  • Features an increased number of tubes and fins in the same height package
  • Optimum fin per inch ratio promotes maximum cooling
  • Standard water pressure bung for easy plumbing
  • -16 AN Male right hand inlet, 1-3/4” right hand outlet
  • 20” overall height
  • 24” core width
  • 18-3/4” tank height
  • 27-1/2 tank width
  • 2” tank thickness
  • 10 lbs. dry weight
