AFCO 80180 Electric Cooling Fan, 12 Inch S-Blade

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Finish:
Painted
Reversable:
Yes
Material Type:
Plastic
Blade Count:
10
Blade Material:
Plastic
Cooling Fan Type:
Electric
MFG. Part #:
80180
Hardware Included:
Yes
Depth:
2.48
Fan Diameter:
12.00
Notes
Will work as a pull fan in a clockwise direction, push type in a counterclockwise direction.

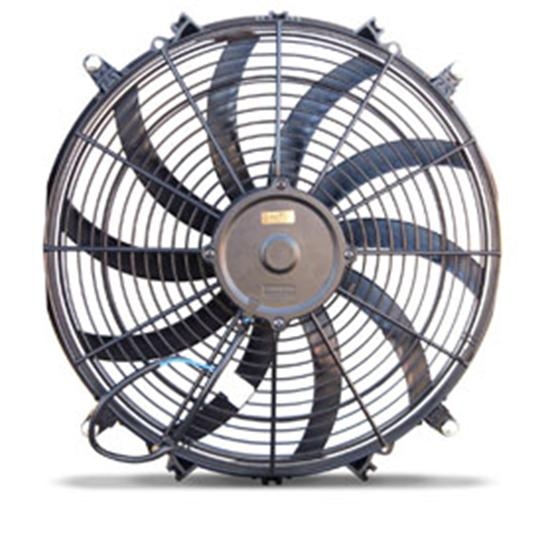

AFCO 80180 Electric Cooling Fan, 12 Inch S-Blade

Click image to enlarge

Details

Reviews (0)

Q & A (5)

What's in the Box

Info

These fans offer the best CFM vs. AMP draw of any electric units we have tested. All fans are made from glass-filled nylon and are rated at zero static. Each fan is also reversable, so it can be used as a puller or pusher.

To reverse the fan, the fan blade can be flipped or the wires can be reversed.

Fan Features:

  • Low amp draw
  • Up to 3000 CFM
  • Mount in front or rear of radiator
  • Thin design
  • Reversible - push/pull

Catalog Correction: These fans DO NOT include an on/off switch.

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance

Item Details

7.7 Amp, 1155 CFM, Depth @ Motor: 2.48"

Customer Reviews

This product has no reviews.

Product Q&A

5 questions : 5 answers

1 answers

What is the part number for the connector / pigtail that would plug into this fan?

MikeDD
Pasadena, MD, USA
March 19, 2015

What is the part number for the connector / pigtail that would plug into this fan?

Answers

March 20, 2015
EricM
We apologize but currently do not offer a pigtail kit for this Afco fan.
1 answers

What is the depth of the fan at the outer edge? How is the fan mounted?

Mator
March 30, 2014

What is the depth of the fan at the outer edge? How is the fan mounted?

Answers

March 31, 2014
EricM
At the outer edge this fan is 1 1/8" deep. It is made to be bolted to a shroud or you can fasten it straight to the radiator with mounting straps such as 58066643 or 91023108.
1 answers

what is the over all diameter.

Noname
Culpeper Va
November 12, 2013

what is the over all diameter.

Answers

November 13, 2013
Jason
This 12" Afco electric cooling fan is 13-5/16" overall in diameter. This fan is rated at 1155 CFM, it draws 7.7 amps, and it is 2.48" thick at the center of the motor. It will work as a pull fan in a clockwise direction or a push type in a counterclockwise direction.
1 answers

can i buy this for a 6 volt battry?

rahard
June 04, 2013

can i buy this for a 6 volt battry?

Answers

June 05, 2013
Jason
Sorry, Afco only offers this fan for 12 volt. Speedway does offer part #910151 that is a 6 volt setup.
1 answers

The CFM is 3000 is this correct? If not what is the correct CFM? Thanks,

T
June 28, 2015

The CFM is 3000 is this correct? If not what is the correct CFM? Thanks,

Answers

June 29, 2015
Eric
Expert
This 12" fan is 1155 CFM
