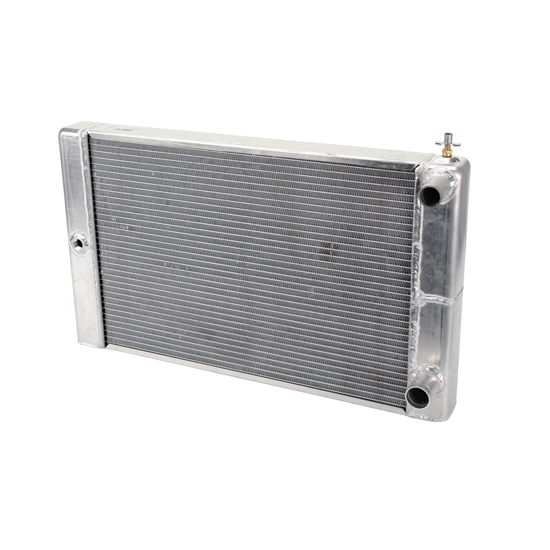

AFCO 80133N Double Pass Racing Radiator-16 Inch Height-1.25 Inch Inlet

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Dual
Outlet Location:
Lower Right
Finish:
Natural
Inlet Location:
Upper Right
Radiator Style:
Double Pass
MFG. Part #:
80133N
Transmission Cooler:
No
Overall Height:
16.00
Overall Width:
27.25
Overall Thickness:
3.13
Inlet Size:
1.25
Core Height:
15.75
Core Width:
22.25
Core Thickness:
2.25
Notes
1/4" NPT air bleed fitting. NO FILLER NECK! 1/2" NPT fitting for sensor.
AFCO 80133N Double Pass Racing Radiator-16 Inch Height-1.25 Inch Inlet
AFCO 80133N Double Pass Racing Radiator-16 Inch Height-1.25 Inch Inlet
AFCO 80133N Double Pass Racing Radiator-16 Inch Height-1.25 Inch Inlet
AFCO 80133N Double Pass Racing Radiator-16 Inch Height-1.25 Inch Inlet

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

AFCO Double Pass provide more cooling over standard type radiators, with less than 2 oz. of added weight.  Common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size.  Keeps your mind off the water temp and puts it onto the race track.

Double pass radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half, giving the radiator the ability to dissipate heat twice.

AFCO uses an exclusive 360 degree TIG-welded baffle that splits the radiator core into two sections. This 360 degree baffle effectively creates two radiators out of one and assures that you wont have any coolant that has entered the radiator but never made it across the core. This is superior to utilizing silicone to seal internal baffles, or worse, a partial weld that allows the coolant to bypass the radiator core completely.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Filler Location: L
Outlet Angle Up/In: 0°
Dry Weight: 13.2 LBS

Specs


Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Is there a fan and shroud that goes with this? Dual spal fans for instance? 3000c Is there a fan and shroud that goes with this? Dual spal fans for instance? 3000cfm total output pull style fan ? Built in aluminum shroud.

Wood
Edmonton, AB, Canada
December 19, 2014

Is there a fan and shroud that goes with this? Dual spal fans for instance? 3000c Is there a fan and shroud that goes with this? Dual spal fans for instance? 3000cfm total output pull style fan ? Built in aluminum shroud.

Answers

December 22, 2014
EricM
Sorry we do not offer a dual fan and shroud to fit this radiator. If using dual fans on this radiator you will more than likely only be able to fit 10" fans. 12" would even be tough to fit but could possibly be done. All of the fans that we offer in a 10" or 12" size fall short of the 1500 cfm each that you are after. We do offer a high flow single fan that moves 3000 cfm. It is part number 91015447.
