AFCO 80124N Double Pass O-Ring Style Radiator-27.5 Inch-Right 2x16ANF

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Dual
Outlet Location:
Lower Right
Finish:
Natural
Inlet Location:
Upper Right
Radiator Style:
Double Pass
MFG. Part #:
80124N
Transmission Cooler:
No
Overall Height:
20.00
Overall Width:
27.50
Overall Thickness:
3.13
Core Height:
18.50
Core Width:
22.38
Core Thickness:
2.25
Filler Neck Height:
1.00
Notes
(2) -16 AN inlets. (1) 1/2" NPT fitting for a sensor.

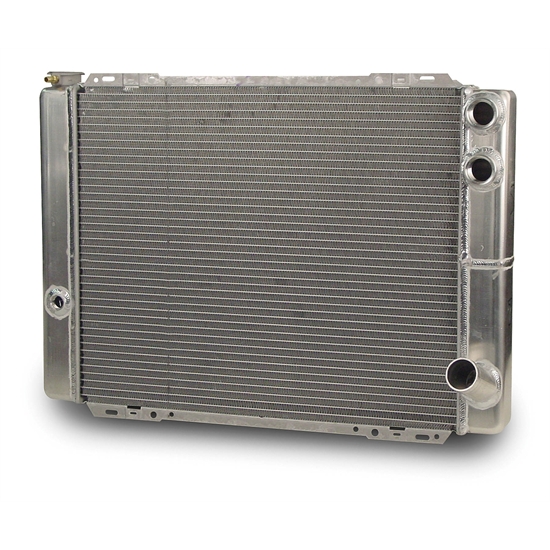

AFCO 80124N Double Pass O-Ring Style Radiator-27.5 Inch-Right 2x16ANF
AFCO 80124N Double Pass O-Ring Style Radiator-27.5 Inch-Right 2x16ANF
AFCO 80124N Double Pass O-Ring Style Radiator-27.5 Inch-Right 2x16ANF

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCO Double Pass provide more cooling over standard type radiators, with less than 2 oz. of added weight.  Common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size.  Keeps your mind off the water temp and puts it onto the race track.

Double pass radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half, giving the radiator the ability to dissipate heat twice.

AFCO uses an exclusive 360 degree TIG-welded baffle that splits the radiator core into two sections. This 360 degree baffle effectively creates two radiators out of one and assures that you wont have any coolant that has entered the radiator but never made it across the core. This is superior to utilizing silicone to seal internal baffles, or worse, a partial weld that allows the coolant to bypass the radiator core completely.

360 Degree Welded - Internal baffle ensures no "short cuts" past the baffle due to internal leaks.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Filler Location: L
Inlet Size & Location: 2X 16ANF R
Tank Width (Top): 27-1/2"
Tank Width (Bottom): 27-1/2"
Dry Weight: 14.3 LBS
