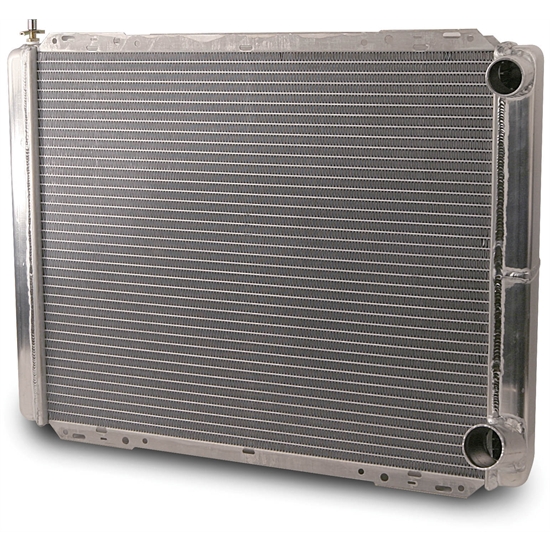

AFCO 80119N 25-3/8 Inch Double Pass Radiator, 1.5 In. Right Side Inlet

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Dual
Outlet Location:
Lower Right
Inlet Location:
Upper Right
Finish:
Satin
Radiator Style:
Double Pass
Transmission Cooler:
No
Shroud:
No
Overall Height:
20.00
Overall Width:
25.75
Overall Thickness:
3.00
Inlet Size:
1.50
Core Height:
18.44
Core Width:
22.38
Core Thickness:
2.25
Tube Size:
1.00
AFCO 80119N 25-3/8 Inch Double Pass Radiator, 1.5 In. Right Side Inlet
AFCO 80119N 25-3/8 Inch Double Pass Radiator, 1.5 In. Right Side Inlet
AFCO 80119N 25-3/8 Inch Double Pass Radiator, 1.5 In. Right Side Inlet

Click image to enlarge

Details

Reviews (1)

Q & A (0)

What's in the Box

Info

AFCO Double Pass provide more cooling over standard type radiators, with less than 2 oz. of added weight.  Common temperature drops are 10-20 degrees when replacing a standard configuration radiator of equal core size.  Keeps your mind off the water temp and puts it onto the race track.

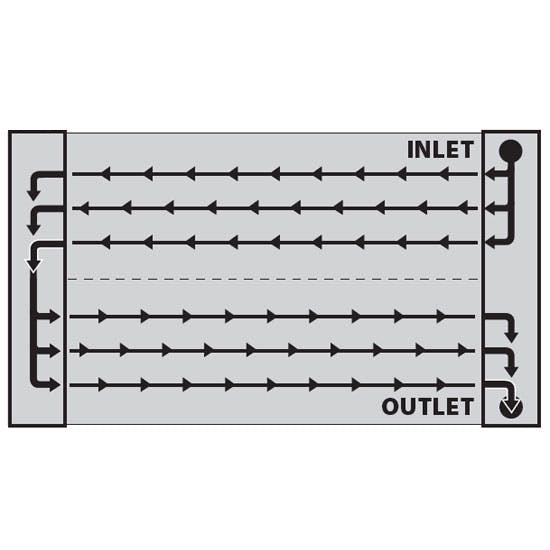

Double pass radiators gain their efficiency by first passing the fluid over the top half of the radiator and then the bottom half, giving the radiator the ability to dissipate heat twice.

AFCO uses an exclusive 360 degree TIG-welded baffle that splits the radiator core into two sections. This 360 degree baffle effectively creates two radiators out of one and assures that you wont have any coolant that has entered the radiator but never made it across the core. This is superior to utilizing silicone to seal internal baffles, or worse, a partial weld that allows the coolant to bypass the radiator core completely.

360 Degree Welded - Internal baffle ensures no "short cuts" past the baffle due to internal leaks.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

Item Details

Filler Location: None
Outlet Angle Up/In: 30°/10°
Dry Weight: 13.2 LBS
1/4 FMT Pipe Fitted w/ Air Bleed

Specs


Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

orv22
Verified Purchaser

Just right

April 07, 2015
Need for new Midwest mod worked perfect will order more items
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
