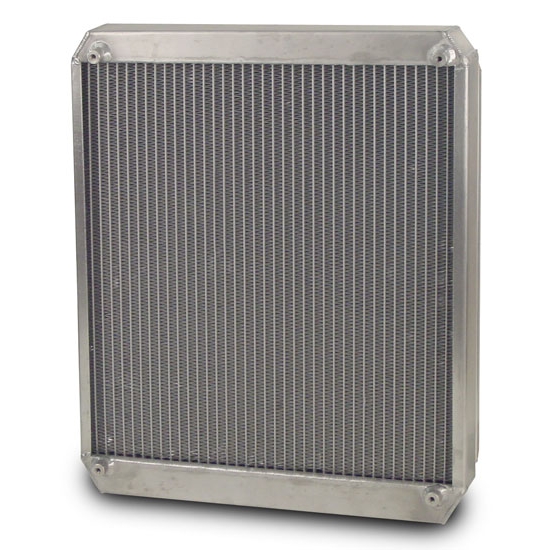

AFCO 80108NZ Dragster/Roadster Double Pass Radiator w/ Fan and Shroud

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Single
Finish:
Polished
Inlet Location:
Upper Left
Outlet Location:
Lower Left
Radiator Style:
Double Pass
Cooling Fan:
Single
Shroud finish:
Polished
Transmission Cooler:
No
Shroud:
Yes
Overall Height:
17.25
Overall Width:
21.06
Overall Thickness:
5.69
Inlet Size:
.75
Core Height:
17.25
Core Width:
17.94
Core Thickness:
1.00
Tube Size:
1.00
AFCO 80108NZ Dragster/Roadster Double Pass Radiator w/ Fan and Shroud
AFCO 80108NZ Dragster/Roadster Double Pass Radiator w/ Fan and Shroud
AFCO 80108NZ Dragster/Roadster Double Pass Radiator w/ Fan and Shroud

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCOs Double Pass Dragster radiator is specifically designed for roadsters and dragsters. Designed to be compact and highly efficient, these radiators provide the needed cooling to keep you cool at the line without sacrificing performance due to excess weight and coolant.

Features a 16 fin per inch, NO epoxy core for maximum efficiency and service as well as high CFM/low AMP draw fan & shroud combo. This radiator comes complete with fan on/off switch, 4 mounting bosses and 3/4" FNPT (Female National Pipe Thread) inlet/outlet.

  • Overall Height:  21"
  • Tank Height:  21"
  • Width:  17-5/16"
  • Tank Thickness:  2-1/8"
  • Filler Location:  None
  • Inlet Size & Location:  3/4" FNPT (L)
  • Outlet Size & Location:  3/4" FNPT (R)
  • Drain Cock Fitting:  1/4" NPT brass (included)
  • Dry Weight:  12.2 lbs.
  • Fan Amp Draw:  10 Amps

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

1550 CFM 14" S-Blade Fan - 10 Amp
