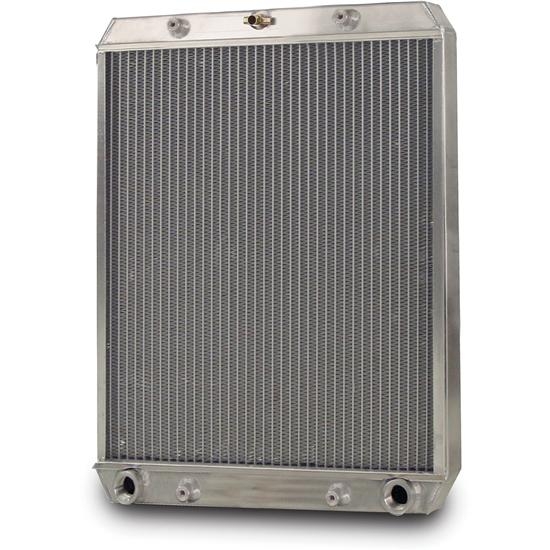

AFCO 80108NR Dragster/Roadster Double Pass Radiator

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Downflow
Sold in Quantity:
Each
Row Quantity:
Single
Inlet Location:
Upper Left
Finish:
Natural
Radiator Style:
Double Pass
Outlet Location:
Upper Right
MFG. Part #:
80108NR
Transmission Cooler:
No
Overall Height:
21.13
Overall Width:
17.25
Overall Thickness:
2.25
Core Height:
18.25
Core Width:
17.00
Core Thickness:
1.00
Notes
Inlet and outlet fittings are both 3/4" NPT. Bolt mounting pattern is 8.38" x 19.25" on the hose mounting side.
AFCO 80108NR Dragster/Roadster Double Pass Radiator
AFCO 80108NR Dragster/Roadster Double Pass Radiator
AFCO 80108NR Dragster/Roadster Double Pass Radiator

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCO's Double Pass 'Dragster' radiator is specifically designed for roadsters and dragsters. Designed to be compact and highly efficient, these radiators provide the needed cooling to keep you cool at the line without sacrificing performance due to excess weight and coolant.

  • Overall Height:  21"
  • Tank Height:  21"
  • Width:  17-5/16"
  • Tank Thickness:  2-1/8"
  • Filler Location:  None
  • Inlet Size & Location:  3/4" FNPT (L)
  • Outlet Size & Location:  3/4" FNPT (R)
  • Drain Cock Fitting:  1/4" NPT brass (included)
  • Dry Weight:  12.2 lbs.
  • Fan Amp Draw:  10 Amps

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
