AFCO 80107NZ Scirocco-Style Dual Pass Radiator RH In/Outlet 1.25 OD NF

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Dual
Finish:
Polished
Outlet Location:
Lower Right
Inlet Location:
Upper Right
Radiator Style:
Double Pass
Transmission Cooler:
No
Shroud:
No
Overall Height:
12.63
Overall Width:
21.50
Overall Thickness:
3.00
Inlet Size:
1.50
Core Height:
12.63
Core Width:
17.88
Core Thickness:
2.25
Tube Size:
1.00

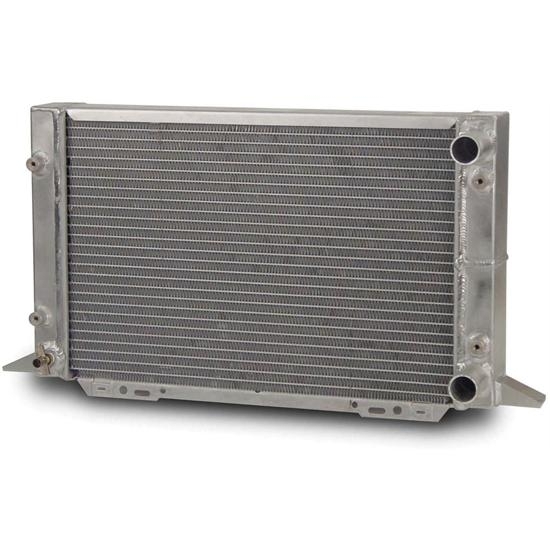

AFCO 80107NZ Scirocco-Style Dual Pass Radiator RH In/Outlet 1.25 OD NF

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCO offers several versions of the popular Double Pass "Scirocco-style" radiator. Available for Ford, Chrysler, or GM applications, the all-aluminum furnace brazed design (no epoxy) provides maximum cooling protection for the most demanding door-slammers.

  • Double Pass for max. cooling in a compact, lightweight package
  • 2 rows of 1" cores
  • Sturdy TIG-welded 2" foot mounts
  • Top fin covers built in
  • Four 1/4"-20 mounting bungs
  • 1/4" brass drain cock/Stainless hardware included
  • 100% TIG welded (no epoxy)
  • Overall Height:  13-1/4"
  • Tank Height:  12-1/2"
  • Tank Width Top:  21-1/2"
  • Tank Width Bottom:  21-1/2"
  • Width with Flanges:  25-1/2"
  • Tank Thickness:  3"
  • Dry Weight:  8 lbs.
  • Fan Amp Draw:  7.7 Amp

Use with Fan & Shroud Assembly (sold separately) for max. efficiency.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

RH Inlet/Outlet, 1.25"/1.25" OD
(No Filler neck)
