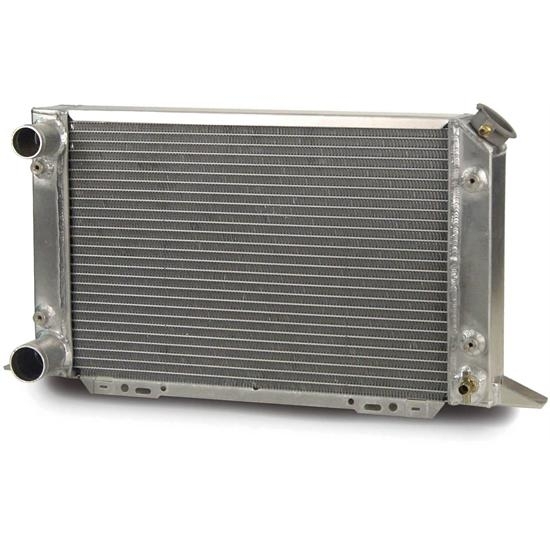

AFCO 80105NZ Scirocco-Style Dual Pass Radiator L In/Outlet 1.5/1.75 OD
AFCO 80105NZ Scirocco-Style Dual Pass Radiator L In/Outlet 1.5/1.75 OD

AFCO 80105NZ Scirocco-Style Dual Pass Radiator L In/Outlet 1.5/1.75 OD

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
AFCO 80105NZ Scirocco-Style Dual Pass Radiator L In/Outlet 1.5/1.75 OD
Image Gallery
AFCO 80105NZ Scirocco-Style Dual Pass Radiator L In/Outlet 1.5/1.75 OD
AFCO 80105NZ Scirocco-Style Dual Pass Radiator L In/Outlet 1.5/1.75 OD
Zoomed In Image
We estimate this item will ship on or before October 2nd.
Part # 10680105NZ
$586.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 5 business days for AFCO to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Radiator Style:
Double Pass
Material Type:
Aluminum
Inlet Location:
Upper Left
Outlet Location:
Lower Left
Shroud:
No
Finish:
Polished
Overall Width:
21.50"
Overall Height:
12.63"
Overall Thickness:
3.00"
Core Height:
12.19"
Core Width:
17.88"
Core Thickness:
2.25"
Inlet Size:
1.50"
Tube Size:
1.00"
Tube Style:
Crossflow
Row Quantity:
Dual
Transmission Cooler:
No
Sold in Quantity:
Each

Info

AFCO offers several versions of the popular Double Pass "Scirocco-style" radiator. Available for Ford, Chrysler, or GM applications, the all-aluminum furnace brazed design (no epoxy) provides maximum cooling protection for the most demanding door-slammers.

  • Double Pass for max. cooling in a compact, lightweight package
  • 2 rows of 1" cores
  • Sturdy TIG-welded 2" foot mounts
  • Top fin covers built in
  • Four 1/4"-20 mounting bungs
  • 1/4" brass drain cock/Stainless hardware included
  • 100% TIG welded (no epoxy)
  • Overall Height:  13-1/4"
  • Tank Height:  12-1/2"
  • Tank Width Top:  21-1/2"
  • Tank Width Bottom:  21-1/2"
  • Width with Flanges:  25-1/2"
  • Tank Thickness:  3"
  • Dry Weight:  8 lbs.
  • Fan Amp Draw:  7.7 Amp

Use with Fan & Shroud Assembly (sold separately) for max. efficiency.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

LH Inlet/Outlet, 1.5"/1.75" OD, RH Filler
Some parts are not legal for use in California or other states with similar laws/regulations
