AFCO 80100N Universal Fit Racing Radiator, 22 Inch Chevy

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Dual
Inlet Location:
Upper Left
Outlet Location:
Lower Right
Finish:
Natural
Radiator Style:
Single Pass
MFG. Part #:
80100N
Transmission Cooler:
No
Overall Height:
19.75
Overall Width:
21.50
Overall Thickness:
3.00
Inlet Size:
1.50
Core Height:
18.25
Core Width:
17.88
Core Thickness:
2.25
Filler Neck Height:
.88

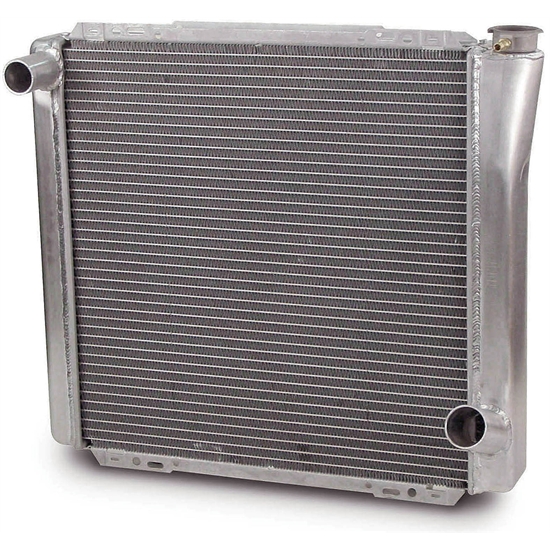

AFCO 80100N Universal Fit Racing Radiator, 22 Inch Chevy

Click image to enlarge

Details

Reviews (1)

Q & A (1)

What's in the Box

Info

Of all the components in the cooling system, the performance of the radiator is the most critical. Afco understands the vital role the radiator plays in protecting the investment you have in your car. That is why they make no excuses or compromises in constructing the best aftermarket radiators in the industry. Dont trust your pride and joy to anything less than Afco quality.

Afco radiators allow your car to remain at constant temperature, which means that power delivery is more consistent. Using years of experience, advanced design, and thorough testing, Afco radiators are designed to promote optimal air flow and cooling by utilizing appropriate fin count, tube size, core thickness, and fin serration for each particular application.

  • 100% Aluminum construction (no epoxy)
  • 100% TIG welded
  • 100% pressure-tested
  • Cast filler necks feature screw-in-bleed, wont crack or leak with age

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Filler Loc: R
Outlet Angle Up/In: 30°/10°
Dry Weight: 11.2 LBS

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Jacko
Verified Purchaser
Verified Reviewer
Atlanta Ga.

This Radiator Rocks!!

September 18, 2015
I own a vintage limousine company and this radiator went into a 1961 Bentley S-2. The area I had was very limited and had a bonnet style hood to go over it. Because of there I had to install it, I would have liked mounting brackets on the front side of the radiator, I just had to think a little harder. The coolest part is how well the product worked. My cars are smallblock Chevy powered and the capacity and a 14" cooling fan does the trick, even with the AC system running full blast. The radiator I pulled out would have cost me $$$$$$$ to replace..needles to say Speedway saved me thousands. Thanks For having a product on the shelf and getting it to me within 3 days!!! Simply amazing!
Pros:
  • Great Workmanship
  • Works Like Stated
Cons:
  • Needs Mounts Both Sides
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

What is the overall width, left to right? What about brackets?

Ray
Santa Rosa Beach, FL
July 19, 2011

What is the overall width, left to right? What about brackets?

Answers

July 19, 2011
Jason
The width is 22" outside to outside. The only brackets are on top and bottum of radiator
