AFCO 7250-0300 Basic Rear Disc Brake Kit

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Finish:
Natural
Rotor Construction:
Vented
Rotor Diameter:
11.75
Rotor Hat Bolt Pattern:
8 x 7.00"
Material Type:
Cast Iron
Bolt Pattern:
Multi: 5 on 5"/4.75"/4.50"
Rotor Location:
Rear
Rotor Shape:
Round
Thread Pitch:
7/16"-20
MFG. Part #:
7250-0300
Hardware Included:
Yes
Drilled:
No
Slotted:
No
Stud Diameter:
.5
Rotor Thickness:
.81
Notes

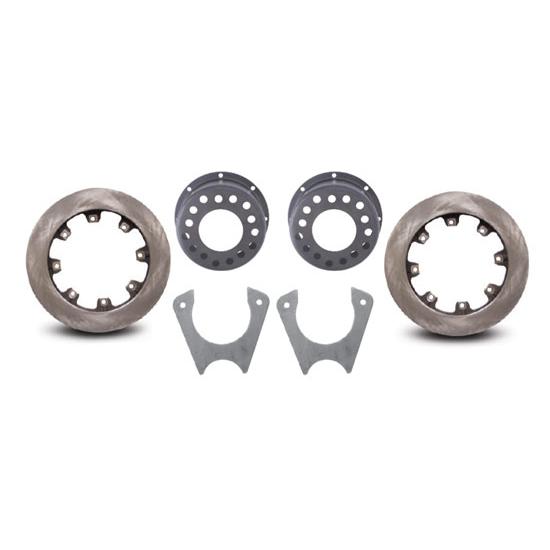

Includes rotors, rotor hats, caliper brackets, pad spacers, and hardware.
AFCO 7250-0300 Basic Rear Disc Brake Kit

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (0)

Q & A (2)

What's in the Box

Info

Kits for metric calipers. These basic kits include brackets, steel vented rotors, hats and bolts. Caliper brackets weld to 3" tube rearend. Hat fits 4-1/2", 4-3/4" and 5" bolt circle.

Notes

Brake pad and caliper installation note:

This bracket features a 90 degree bend in the bracket at the slider bolt threaded area for additional caliper support.  This part of the bracket may or may not interfere with the corner of the inner brake pad backing plate due to differences in brake pad manufacturers.  When this occurs, it will be necessary to simply remove a minimal amount of backing plate material at each corner of the inner brake pad to allow for the necessary clearance between the bracket and brake pad when the caliper and pads are fully installed.
