AFCO 30238 Inner Tie Rod End, 4 Inch, RH Thread

Specs
Material Type:
Steel
Sold in Quantity:
Each
Threads:
RH Male
Finish:
Natural
Thread Pitch:
5/8"-
Center Hole to End of Shank:
3.96
MFG. Part #:
30238
Overall Length:
4.78
Stud Length:
1.69
Shank Length:
3.26
Taper Large End:
.59
Taper Small End:
.50
Notes
1.50

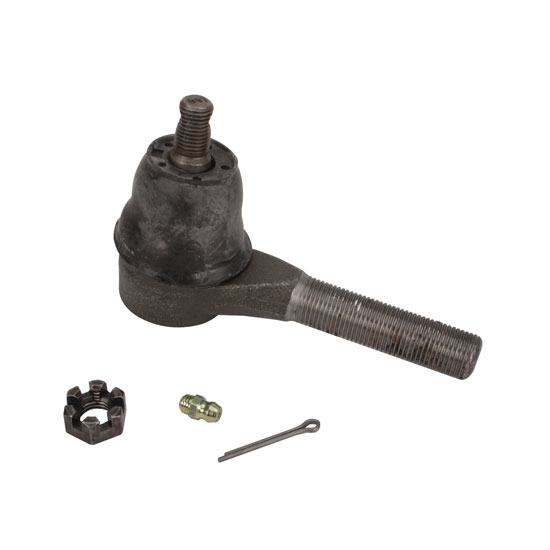

AFCO 30238 Inner Tie Rod End, 4 Inch, RH Thread

Click image to enlarge

Details

Reviews (0)

Q & A (3)

What's in the Box

Info

  • 5/8" threaded
  • Used in AFCO tie rod assembly
  • Most popular tie rod end; fits most rack & pinion cars

Item Details

4" Length
5/8" RH Threaded

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

I'm looking for a tie rod end with a RH 5/8-18 thread and a 7° taper to fit your bolt on radius rod brackets. I'd like it to be a compact design like the one pictured. I don't want to have to cut the end of the wish bone off and re-weld a new bung on. I'm trying to work with what the previous owner did. Can you recommend a tie rod end? He was running heim joints. Thanks

jim33
CT
December 12, 2013

I'm looking for a tie rod end with a RH 5/8-18 thread and a 7° taper to fit your bolt on radius rod brackets. I'd like it to be a compact design like the one pictured. I don't want to have to cut the end of the wish bone off and re-weld a new bung on. I'm trying to work with what the previous owner did. Can you recommend a tie rod end? He was running heim joints. Thanks

Answers

December 13, 2013
EricM
Sorry I do not have or know of such an item. If you want to use the wishbones you have with a tie rod end instead of a heim joint then you will need to weld a new bung on them.
1 answers

Is the threads 5/8-18 and will they fit the 7° taper on your bolt on radius rod brackets?

jim33
CT
December 09, 2013

Is the threads 5/8-18 and will they fit the 7° taper on your bolt on radius rod brackets?

Answers

December 09, 2013
EricM
No the taper on these tie rod ends is too small to be used in place of a Ford tie rod end such as intended for those radius rod brackets. These are fine thread for the tube side 5/8"-18.
1 answers

What is the size of the taper top and bottom and length of taper.

Little Horse
Waco, Tx
August 19, 2012

What is the size of the taper top and bottom and length of taper.

Answers

August 21, 2012
Eric
Taper minor diameter - .500” Taper major diameter - .590” Taper length - .700”
