AFCO 2674-510 26 Series Big Threaded Adj. Shock 7 In., Comp 4/Reb 5-10

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Shock Type:
Mono Tube
Shock Body Material:
Aluminum
Adjustability:
Single Adjustable
Shock Stroke:
7
Shock Body Type:
Threaded
Shock Body Size:
Large Body
Gas Pressure Adjustable:
Yes
MFG. Part #:
6290SPZ

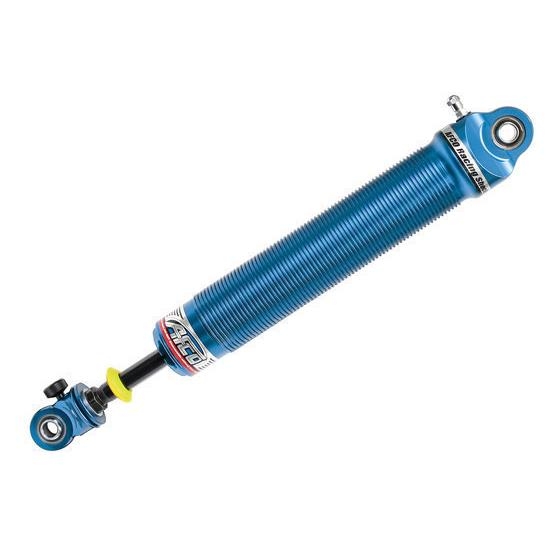

AFCO 2674-510 26 Series Big Threaded Adj. Shock 7 In., Comp 4/Reb 5-10

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCO innovation provides racers with more options. The M2 Single adjustable shock brings the race proven advantages of the M2 Mono-Tube Shock to a non-canister single adjustable design. Simply put, AFCO's M2 Single gives your racecar more sensitivity, more adjustment range, more versatility, and more traction!

  • Compressed Length: 13.00"
  • Extended Length: 18.91"
  • Dirt/Pavement Late Model

AFCO M2 26 Series Aluminum Body - Single Adjustable Shocks. Rebound Adjustable. 7 Inch Stroke.

All AFCO M2 shocks are 100% dyno tested, rebuildable and revalvable. Includes detailed tuning guide.

Late Model Swing Arm Gas Shock Chart (Link)

Late Model 4-Link Gas Shock Chart (Link)



Application

  • Dirt Late Model/Crate Late Model
  • Recommended Swing Arm & 4-Link Gas Shock
    • Right Front
      • Rough Track Condition

Notes

  • Internal Bladder
    • Just like the more expensive M2 Double Adjustable, the M2 Single incorporates a gas charged bladder design to provide lightning fast response to high frequency shaft movement while maintaining exceptional low speed dampening control.
  • Low Friction
    • All the M2's low friction components are utilized in the single adjustable model to provide consistent fade free performance and allow the key functions of the shock to work at their maximum effictiveness.
  • Swiv-Align Floating Spring Seat
    • The design of the high tech Swiv-Align spring seat removes nearly all side forces from the shaft and makes the M2’s damping smoother and more consistent than other shocks without any added expense.
  • Adjustability
    • The M2's unique design allows for completely independent control with absolutely no change in the fixed valve portion of the shock. The M2 Single Adjustable uses the shaft-mounted adjuster knob in rebound adjustable configurations.
