AFCO 2494-5D 24 Series Steel Gas Shock-9 Inch, Left Rear, Comp 4/Reb 5

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Shock Type:
Mono Tube
Finish:
Powder Coated
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Bushing Material:
Steel
Shock Stroke:
9
Shock Body Type:
Smooth
Shock Body Size:
Large Body
MFG. Part #:
2494-5D
Valve Positions:
4 compression - 5 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Inside Diameter:
46
Extended Length:
23.85
Compressed Length:
14.95
Shock Eyelet Width:
.625
Body Diameter:
2.00
Bolt Hole Circle:
.500
Notes
IMCA LEGAL

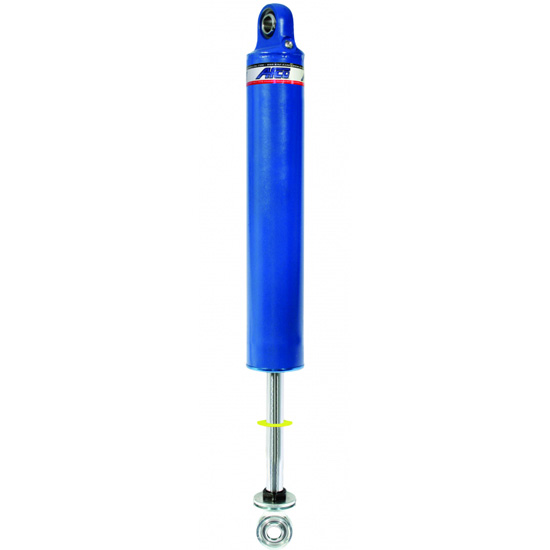

AFCO 2494-5D 24 Series Steel Gas Shock-9 Inch, Left Rear, Comp 4/Reb 5

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCO's sophisticated 24 Series steel body gas shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These mono-tube shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.

  • Compressed Length:  14.95"
  • Extended Length:  23.85"
  • IMCA Racing approved
  • Mono-tube steel body
  • Gas pressure floating piston design
  • Deflective disc technology
  • Performance at its best on fast or rough tracks
  • Grooved for coil-over applications
  • Street Stock/Super Stock applications (left rear)
  • Rebuildable and serviceable through an authorized AFCO shock rebuild center

Dirt Modified Swing Arm Gas Shock Chart (Link)

Application

  • Dirt Modifieds
  • Recommended Swing Arm Gas Shocks-IMCA Legal
    • Left Rear
      • Rough Track Condition
