AFCO 2474D 24 Series Steel Gas Shock, Left Front, 7 Inch, Comp 4/Reb 4

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Finish:
Powder Coated
Inside Diameter:
46
Extended Length:
19.85
Compressed Length:
12.95
Shock Type:
Mono Tube
Shock Eyelet Width:
.625
Hardware Included:
No
Bushing Material:
Steel
Body Diameter:
2.00
MFG. Part #:
2474D
Adjustability:
Non-Adjustable
Valve Positions:
4 compression - 4 rebound
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Bolt Hole Circle:
.500
Coil-Over Compatible:
Yes
Garage Sale:
No
Shock Stroke:
9
Shock Body Type:
Smooth
Shock Body Size:
Large Body
Notes
IMCA LEGAL

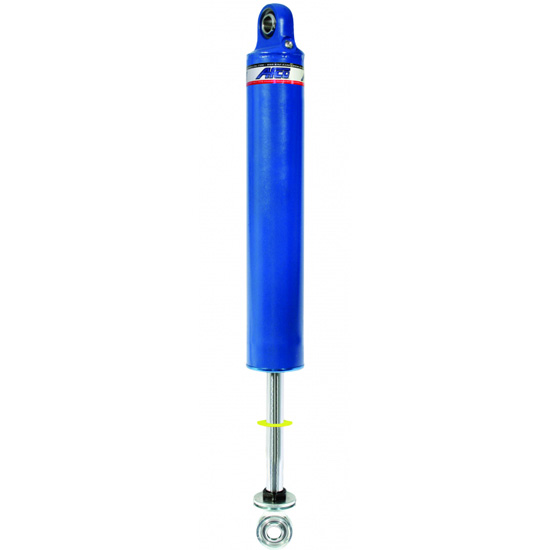

AFCO 2474D 24 Series Steel Gas Shock, Left Front, 7 Inch, Comp 4/Reb 4

Click image to enlarge

Please NOTE the following about this product:

  • Item 1062474D is made to order. We will ship it from our warehouse when it is produced.

Details

Reviews

Q & A

What's in the Box

Speedway Motors is proud to be the first to announce the release of AFCO's newly designed IMCA approved steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.

The new Steel Body 24 Series Gas Shock uses a Floating Piston Design. They are rebuildable and serviceable through an authorized Afco shock rebuild center, and are available in straight or split valve codes. Non coil-over compatible.

The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!

Item Details

Comp/Rebound: 4/4 Left Front

Customer Reviews

This product has no reviews.
