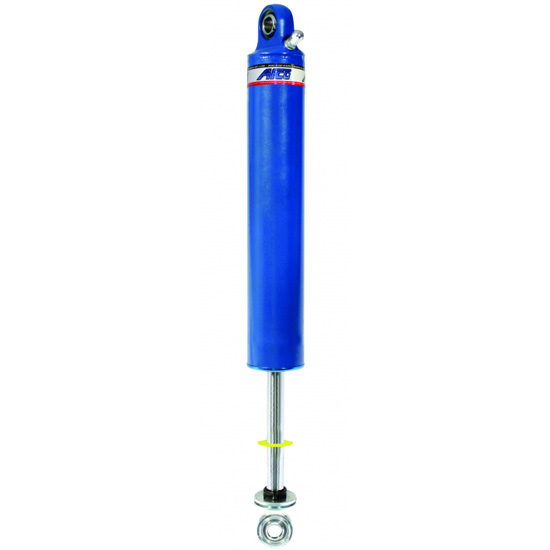

AFCO 2393-5D Steel Gas Shock W/ Schrader Valve, 9 IN., Comp 3/Reb 5 LH
AFCO 2393-5D Steel Gas Shock W/ Schrader Valve, 9 IN., Comp 3/Reb 5 LH

AFCO 2393-5D Steel Gas Shock W/ Schrader Valve, 9 IN., Comp 3/Reb 5 LH

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
AFCO 2393-5D Steel Gas Shock W/ Schrader Valve, 9 IN., Comp 3/Reb 5 LH
Image Gallery
AFCO 2393-5D Steel Gas Shock W/ Schrader Valve, 9 IN., Comp 3/Reb 5 LH
AFCO 2393-5D Steel Gas Shock W/ Schrader Valve, 9 IN., Comp 3/Reb 5 LH
Zoomed In Image
We estimate this item will ship on or before October 3rd.
Part # 10623935D
Save 31%
$119.99
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 5 business days for AFCO to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

MFG. Part #:
2393-5D
Shock Type:
Mono Tube
Adjustability:
Non-Adjustable
Coil-Over Compatible:
Yes
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Gas Pressure Adjustable:
Yes
Shock Stroke:
9
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Extended Length:
23.85"
Compressed Length:
14.95"
Body Diameter:
2.00"
Valve Positions:
3 compression - 5 rebound
Finish:
Powder Coated
Bushing Material:
Steel
Sold in Quantity:
Each
Inside Diameter:
46 mm
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

AFCO Steel Body Gas Shocks with Schrader Valve.  Left Side.  9 Inch Stroke.
Some parts are not legal for use in California or other states with similar laws/regulations
