AFCO 23150CR 10 Inch Extreme Chrome Coil-Over Spring, 150 Rate

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Chrome
Coil Spring End (A):
Square
Coil Spring End (B):
Square
MFG. Part #:
23150CR
Progressive Rate Spring:
No
Inside Diameter:
2.625
Free Height:
10.00
Spring Rate:
150

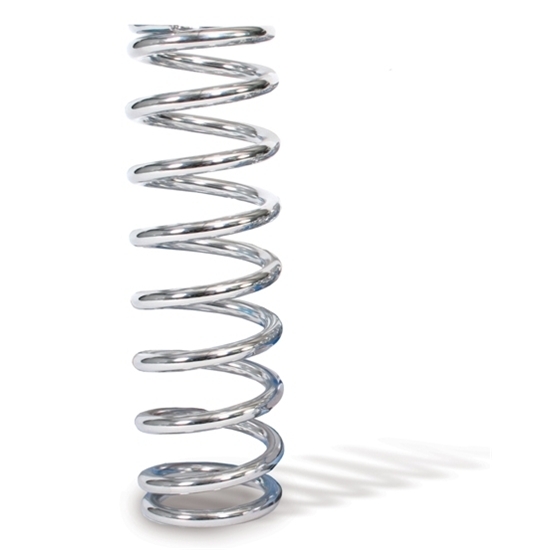

AFCO 23150CR 10 Inch Extreme Chrome Coil-Over Spring, 150 Rate

Click image to enlarge

Details

Reviews (1)

Q & A (1)

What's in the Box

Info

Whether you are building a purpose-built drag strip machine or a beautiful show car, Extreme Chrome coilover springs will provide the strength, durability and show stopping good looks you desire.

  • Industry exclusive 360° polished wire
  • High quality REAL chrome finish
  • Looks great from any angle - not just on the outside edge
  • 2-5/8" inside diameter

All Afcoils carry a lifetime warranty to remain within 2% of the original nominal free height.

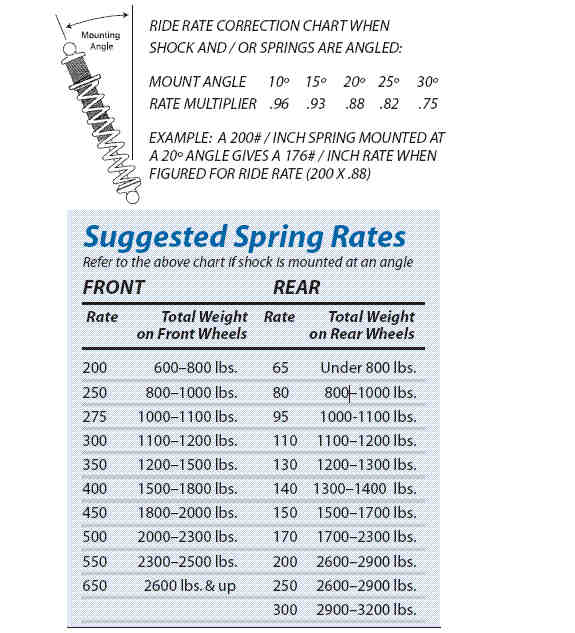

Afcoil Spring Rate Guide (Link)

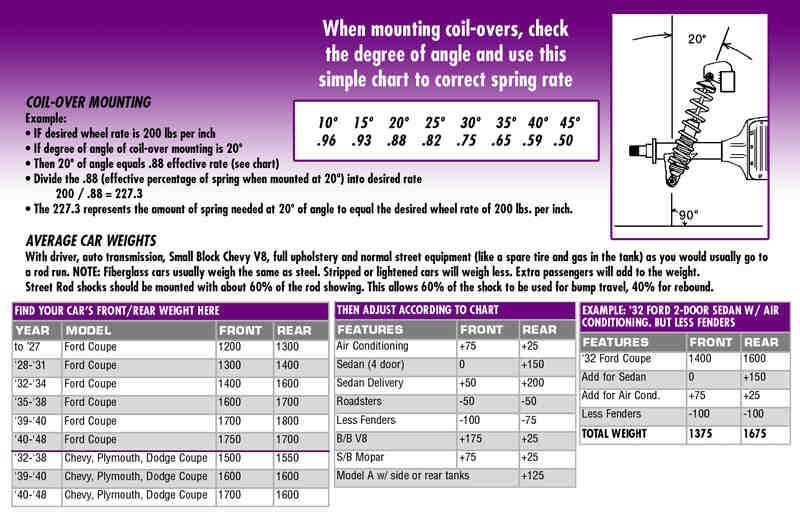

Coil-Over Mounting Guide (Link)

Warranties

Afcoil springs are manufactured using the finest spring material available. They are designed for extended life and consistent performance. They are guaranteed to do the job for which they are designed for as long as they are owned by the original purchaser.

AFCO will replace any Afcoil spring that ever exceeds the maximum allowable 2% loss of free height from original nominal specification. One way freight is included.

  1. Guarantee applies to original retail purchaser only.
  2. Damaged springs not covered by warranty.
  3. Spring must be returned to AFCO freight prepaid along with a copy of the original invoice.
  4. No other warranty, either expressed or implied, applies to Afcoil springs.
(Warranty not valid without invoice.)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Lee29
Verified Purchaser
Tulsa, OK, USA

Good quality, good chrome

November 02, 2013
I used the spring guide to determine what I thought would be the correct spring. Seemed to work fine for my needs.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

What will be the loaded height of the spring? For instance: What is the height of the spring when loaded at the middle of the range given on the chart for rear application (1500-1700 lbs.).

none
La Luz, N.M.
January 30, 2016

What will be the loaded height of the spring? For instance: What is the height of the spring when loaded at the middle of the range given on the chart for rear application (1500-1700 lbs.).

Answers

February 01, 2016
Eric
Expert
That is difficult to answer accurately. The spring rate will help you calculate it but there is some error due to the angle the spring is mounted, the suspension component that the spring mount is fastened to, etc. A 150 pound spring will compress 1" when 150 pounds is placed on it. It will compress 2" when 300 pounds is placed on it, and 3" when 450 pounds is placed on it, etc. The 150 spring rate is suggested for 1500 to 1700 pounds. So 1600 pounds divided by 2 springs = 800 pounds per spring. 800 divided by 150 = 5.33" of compression to support the weight. Again there is some error depending upon other factors but that will at least give you some idea of how much it will be compressed.
