AFCO 20249 Lower Leaf Spring Shock Mount Plate, LH

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
MFG. Part #:
20249
Hardware Included:
No
Overall Thickness:
.250
Hole Diameter:
.500

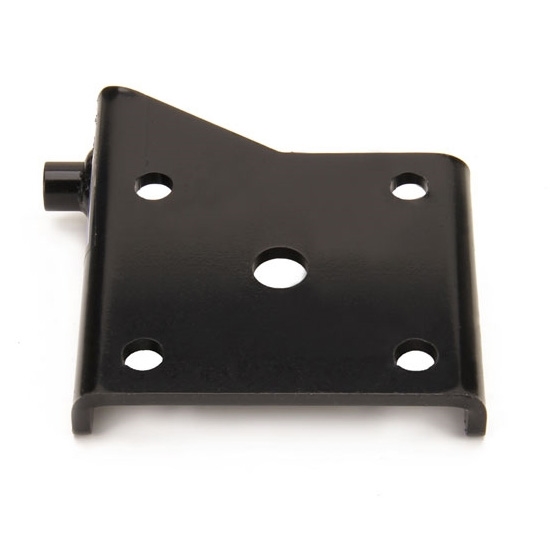

AFCO 20249 Lower Leaf Spring Shock Mount Plate, LH

Click image to enlarge

Details

Reviews (1)

Q & A (1)

What's in the Box

Info

These rigid steel shock mounting plates from AFCO are superior quality pieces at a super low price.

  • Mounting square center to center measurements are 3.00" x 3.50"
  • Mounting holes are .50" I.D.
  • Center hole is .75" I.D. and centered 2.75" from the turndown edges of the plate
  • Plate itself is .25" thick
  • From the flat of the plate to the outer lip of the shock mount is 2.25" (1.50" to the center of shock mount hole)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Willow
Verified Purchaser
Virginia

These plates fit my application perfectl

August 19, 2014
These ARCO plates fit well and allowed me to go with a much stronger shock mount compared to my factory originals. Works great for us weekend Street Rodders
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

What are the dimensions of the hole pattern? What is the height of the shock mount from the plate?

June 02, 2011

What are the dimensions of the hole pattern? What is the height of the shock mount from the plate?

Answers

June 08, 2011
Tech
The mounting square center to center measurements are 3.00" x 3.50." The mounting holes are .50" ID. The center hole is .75" ID and centered 2.75" from the turn down edges of the plate. The plate itself is .25" thick. From the flat of the plate to the outer lip of the shock mount is 2.25" (1.50" to the center of shock mount hole). These measurements are accurate for all 3 of these part no.'s.
Page 1 of 1
