AFCO 20231HD Chrysler Type Multi-Leaf Spring-166 Lb. Rate, 5 Inch Arch

Specs
Material Type:
Steel
Sold in Quantity:
Each
Number of Leafs:
5
Finish:
Natural
Leaf Spring Eye Type:
Standard Eye
Spring Location:
Rear
MFG. Part #:
20231HD
Overall Width:
2.5
Length Eye to Eye:
52.875
True Arch:
6.625
Front Eye I.D.:
1.5
Rear Eye I.D.:
1.0
Spring Rate:
166

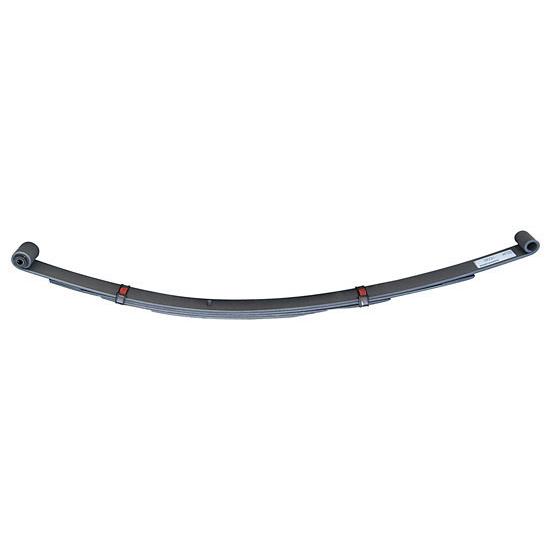

AFCO 20231HD Chrysler Type Multi-Leaf Spring-166 Lb. Rate, 5 Inch Arch

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

Racers using leaf springs realize the importance of accurate arch, load capacity and durability. This AFCO leaf spring is the highest quality racing spring available and gives you features not available in any other leaf spring. This multi-leaf spring is constructed from high-quality chrom-vanadium steel and set to actual arch following the closest standards in the racing industry. The spring is then heat-treated to provide long life. The final process includes shot-peening to relieve stress in the materials.

  • Chrom-vanadium alloy spring steel material is superior to others and provides consistent rates over a longer life span
  • Teflon rub blocks between leafs reduces friction and maintains consistency of rate
  • Tapered leafs reduce stress by 30-40%, prevents loss of arch
  • Front bushing included
  • Shot-peened after arching to reduce tensile stress, provides 3-5 times more service life to the spring
  • Fits 1966-74 Mopar B body cars
  • Car Weight: 2800-3200 lbs
  • Arch: 6-5/8"
  • Nominal Rate: 166
  • Popular choice rate for stock replacement is 142, 4" arch (20230)

Front bushing included.

AFCO Spring Rate Chart (GIF)
