AFCO 30022 1979-2004 Mustang Street/Strip Front Strut

SAME DAY SHIPPING! Order within the next 14 hours 27 minutes and receive same day shipping

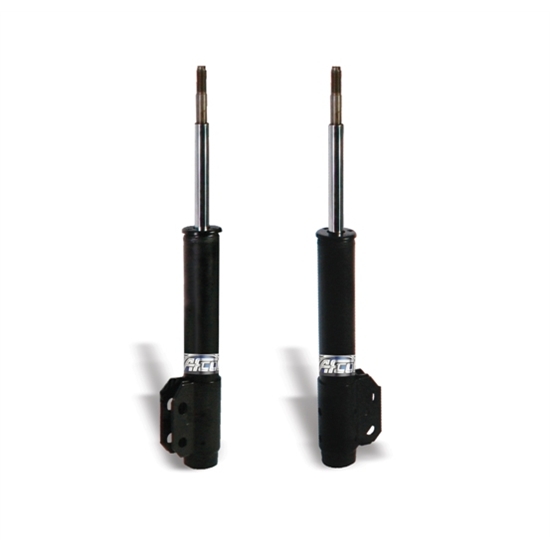

AFCO 30022 1979-2004 Mustang Street/Strip Front StrutAFCO 30022 1979-2004 Mustang Street/Strip Front Strut
AFCO 30022 1979-2004 Mustang Street/Strip Front Strut

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

AFCO Mustang Street/Strip coil-over struts incorporate race inspired valving for hard launches, consistent E.T.'s and improved reaction times. The struts completely replace stock units and can be used in the O.E. configuration. The optional coil-over kit & caster/camber plates will allow for ride height adjustment using a coil-over spring.

  • Fixed valving promotes maximum weight transfer
  • BNC valving provides soft rebound dampening while controlling front end "bounce"
  • Coil-over conversion allows ride height adjustment
  • Caster/Camber plates are recommended when lowering the ride height
  • Complete kit allows for correct geometry at any ride height

Strut package is the perfect complement to AFCO Tubular K-Members and Reactor Series or Eliminator rear shocks.

Note: AFCO recommends a 10" 200 lb. spring for drag racing, or a 14" 125 lb. spring for other uses.

Item Details

(Struts Sold Individually)
