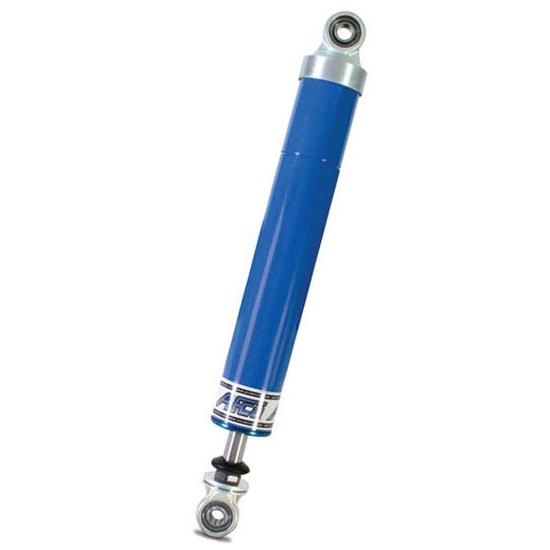

AFCO 1975 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 5/Reb 5
AFCO 1975 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 5/Reb 5

AFCO 1975 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 5/Reb 5

0 Reviews | 0 Answered Questions
On Backorder
Ships FREE
AFCO 1975 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 5/Reb 5
Image Gallery
AFCO 1975 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 5/Reb 5
AFCO 1975 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 5/Reb 5
Zoomed In Image
Part # 1061975
Save 14%
$149.99
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

MFG. Part #:
1975
Shock Type:
Twin Tube
Coil-Over Compatible:
Yes
Shock Body Material:
Steel
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Extended Length:
19.50"
Compressed Length:
12.75"
Body Diameter:
2.00"
Valve Positions:
5 compression - 5 rebound
Finish:
Powder Coated
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Material Type:
Steel

Info

AFCO R-Series Twin-Tube Shocks are packed with quality, performance and value, all inside a rebuildable steel body.  All internal parts of the AFCO Steel Take-A-Part shocks are identical to the components inside the aluminum body shocks, so you can expect the highest levels of performance and durability.

AFCO Steel Body Take-A-Part Shocks let you meet your "steel shock rule" and still allow you to run the most precise shock in the industry.  With the Take-A-Part, you are no longer limited to "off the shelf valves," and you can have the performance of your used shocks brought back to full factory spec with a rebuild rather than having to purchase a new shock.

All AFCO R-Series Shocks are 100% dyno tested, rebuildable and revalvable.

  • Compressed Length: 12.75"
  • Extended Length: 19.50"

The larger body and the full 5/8" shaft of the Big Body provides increased strength, as well as the flexibility of a standard size coilover spring.

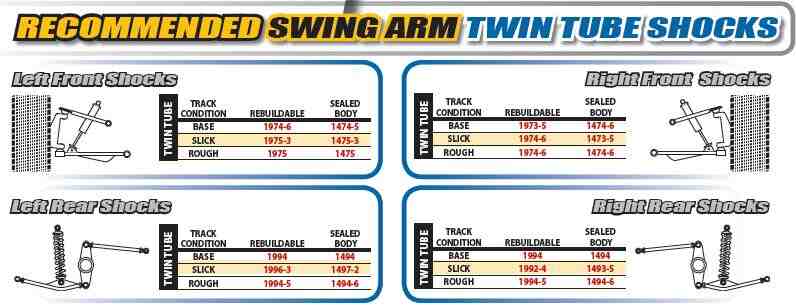

Dirt Modified Swing Arm Twin Tube Shock Chart (Link)

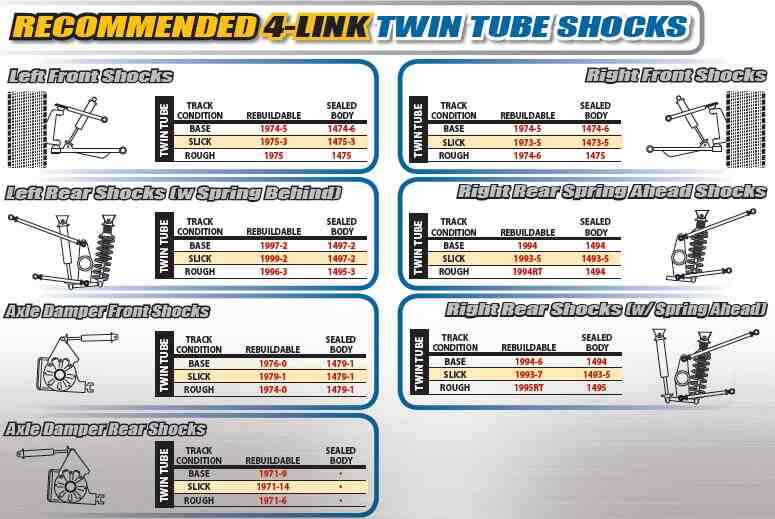

Dirt Modified 4-Link Twin Tube Shock Chart (Link)

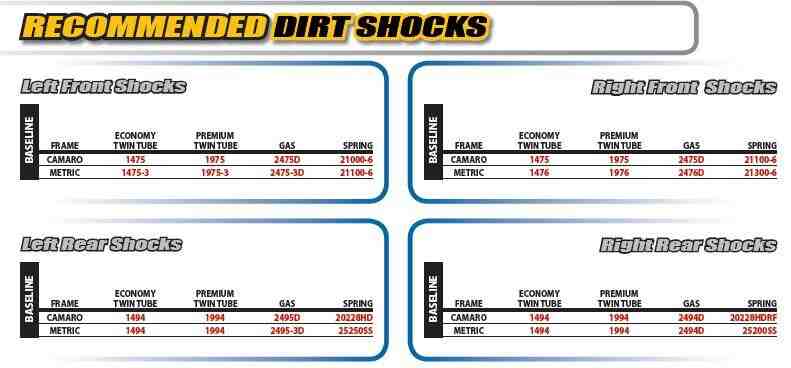

Dirt Street and Super Stock Shock Chart (Link)

Item Details

12.75" Comp, 19.50" Ext
Comp/Rebound: 5/5

Application

Big Body Popular Applications:

  • Modifieds
  • Late Models
  • Limited Late Models
  • Open Wheel
  • Coilover or Conventional Spring
  • Dirt Modifieds
  • Recommended Swing Arm and 4-Link Twin Tube Shocks-Rebuildable
    • Left Front
      • Rough Track Condition
  • Street Stocks and Super Stocks - Dirt
  • Recommended Dirt Shocks - Premium Twin Tube
    • Left or Right Front
      • Camaro Frame
