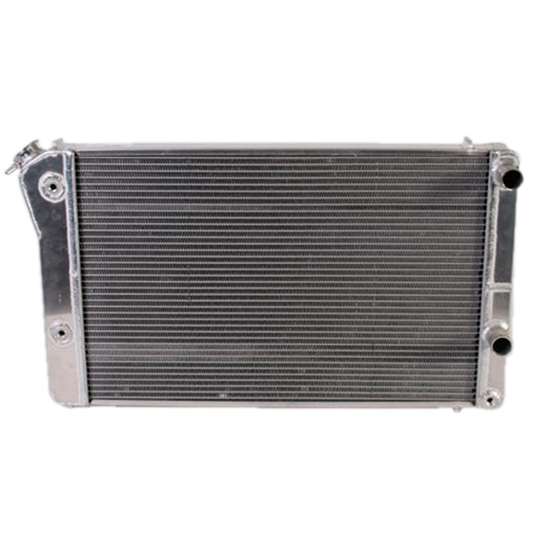

AFCO 1970-81 Firebird/Trans Am LS Swap Radiator

SAME DAY SHIPPING! Order within the next 12 hours 18 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Dual
Finish:
-
Outlet Location:
Lower Right
Inlet Location:
Upper Right
Color:
Black
Radiator Style:
Double Pass
Cooling Fan:
-
Shroud finish:
-
Transmission Cooler:
-
Shroud:
-
Overall Height:
17.29
Overall Width:
33.34
Overall Thickness:
3.00
Inlet Size:
1.38
Core Height:
17.29
Core Width:
27.44
Core Thickness:
2.25
Tube Size:
1.00
AFCO 1970-81 Firebird/Trans Am LS Swap Radiator
AFCO 1970-81 Firebird/Trans Am LS Swap Radiator
AFCO 1970-81 Firebird/Trans Am LS Swap Radiator
AFCO 1970-81 Firebird/Trans Am LS Swap Radiator
Product Video
AFCO 1970-81 Firebird/Trans Am LS Swap Radiator

Click image to enlarge



Details

Reviews

Q & A

What's in the Box

These LS conversion radiators are built with the correct inlet and outlet required for the engine swap. They are 100% TIG welded, 100% pressure tested and use no epoxy or sealers. These double pass radiators were designed for the rigors of racing, but we added the mounts to allow their superior design on the street. After all, there are more important things to be doing than installing your radiator - like enjoying your car on the road!

  • Trans Cooler Port:  1/4" NPT
  • Uses the same tools to install your new radiator as you did to remove the old one
  • Factory fan shroud provisions on many models
  • Drain plugs included
  • Billet filler neck offers strength and higher quality appearance over stamped
  • TIG welded by skilled craftsmen in the USA
  • Inlets and outlets are positioned correctly for ease of flow

1970-1981 Firebird LS Swap Radiator Installation Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Notes

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Specs


Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

does this radiator have provision for the steam tube

Jeremy
Tennessee
May 08, 2015

does this radiator have provision for the steam tube

Answers

May 08, 2015
Zach
Expert
Yes these do have a steam bung in the right hand tank directly under the hose connection point. The photo is an old photo but they are in the radiators on the shelf now.
Page 1 of 1

You may also be interested in:

AFCO Direct Fit 1970-81 Firebird/Trans Am Radiators
(Part #10680290)


Second generation Firebirds & Trans Ams hit the streets in 1970 with big cubic inch, high-horsepower engines that often struggled to keep their cool in the hot summer months. To make matters worse, most of these cars were modified for even more horsepower and performance before their paint was even dry, creating challenges for the enthusiast. AFCO Direct-Fit radiators are designed to handle these high-horsepower engines with a 20% increase in cooling over the stock four-row radiators. These units re also designed to work with or without air conditioning, so you can keep your cool behind the wheel.

  • Built-in mounting brackets w/ pre-drilled holes
  • Factory fan shroud provisions
  • Inlets and outlets are factory-style and in stock locations
  • Billet filler neck offers strength and higher quality appearance over stamped
  • Inlets and outlets are positioned correctly for ease of flow
  • 100% aluminum construction (no epoxy)
  • Furnace brazed core - 2 rows of 1" tubes
  • TIG welded by skilled craftsmen in the USA

I1970-81 Firebird Radiator Installation Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

*Please see Notes tab for index abbreviations.*
Brass Drain Cock Fitting: 1/4" NPT (included)
Transmission Cooler Ports: 1/4" NPT
Filler Neck Hose Barb: 1/8" Straight (included)
