AFCO 1967-72 GM Pickup LS Swap Aluminum Radiator

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Dual
Finish:
-
Outlet Location:
Lower Right
Inlet Location:
Upper Right
Color:
Black
Radiator Style:
Double Pass
Cooling Fan:
-
Shroud finish:
-
Transmission Cooler:
-
Shroud:
-
Overall Height:
18.28
Overall Width:
33.52
Overall Thickness:
3.00
Inlet Size:
1.38
Core Height:
16.78
Core Width:
27.44
Core Thickness:
2.25
Tube Size:
1.00

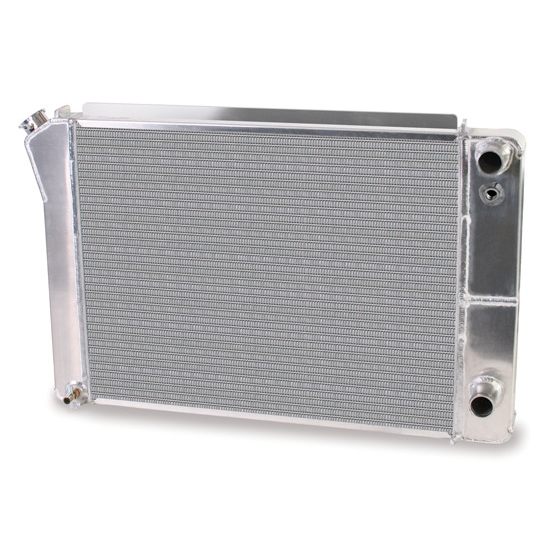

AFCO 1967-72 GM Pickup LS Swap Aluminum Radiator
AFCO 1967-72 GM Pickup LS Swap Aluminum Radiator
AFCO 1967-72 GM Pickup LS Swap Aluminum Radiator
AFCO 1967-72 GM Pickup LS Swap Aluminum Radiator

Click image to enlarge

Details

Reviews (0)

Q & A (4)

What's in the Box

Info

These LS conversion radiators are built with the correct inlet and outlet required for the engine swap. They are 100% TIG welded, 100% pressure tested and use no epoxy or sealers. These double pass radiators were designed for the rigors of racing, but we added the mounts to allow their superior design on the street. After all, there are more important things to be doing than installing your radiator - like enjoying your truck on the road!

  • Uses the same tools to install your new radiator as you did to remove the old one
  • Factory fan shroud provisions on many models
  • Drain plugs included
  • Billet filler neck offers strength and higher quality appearance over stamped
  • TIG welded by skilled craftsmen in the USA
  • Inlets and outlets are positioned correctly for ease of flow

1967-1972 GM Pickup LS Swap Radiator Installation Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article, Radiator Cooling Performance

Notes

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Customer Reviews

This product has no reviews.

Product Q&A

4 questions : 4 answers

1 answers

Is the Satin black finish a powder coat or anodize? How does the black finish affect the cooling efficiency of the radiator?

factory
Canada
February 26, 2014

Is the Satin black finish a powder coat or anodize? How does the black finish affect the cooling efficiency of the radiator?

Answers

February 27, 2014
EricM
The black coating is a process similar to anodizing which chemically bonds with the aluminum. It does not significantly change the cooling ability of the radiator but there will be a very, very slight reduction in thermal transfer ability.
1 answers

Is this a direct bolt in swap or will i need some different mounting brackets ?

kahuna
Rome, GA, USA
August 15, 2013

Is this a direct bolt in swap or will i need some different mounting brackets ?

Answers

August 15, 2013
Jason
This Afco GM pick up radaitor will bolt into place using the original hardware and mounting brackets.
1 answers

Does this radiator have a provision for a steam port?

Rich
Las Vegas
May 13, 2015

Does this radiator have a provision for a steam port?

Answers

May 13, 2015
Eric
Expert
Yes all Afco LS Swap radiators have a steam hose connection.
1 answers

With the transmission cooler option. Is it integrated like the original radiators

Pwolf
Bradenton, fl
January 10, 2016

With the transmission cooler option. Is it integrated like the original radiators

Answers

January 11, 2016
Eric
Expert
Yes if you order the transmission cooler option it is integrated into the tank of the radiator.
