AFCO 1967-69 Camaro/Firebird LS Swap Radiator

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
-
Sold in Quantity:
Each
Row Quantity:
Dual
Finish:
-
Outlet Location:
Lower Right
Inlet Location:
Upper Right
Color:
Black
Radiator Style:
Double Pass
Cooling Fan:
-
Shroud finish:
-
Transmission Cooler:
-
Shroud:
-
Overall Height:
17.75
Overall Width:
28.01
Overall Thickness:
3.00
Inlet Size:
1.38
Core Height:
17.75
Core Width:
22.38
Core Thickness:
2.25
Tube Size:
1.00

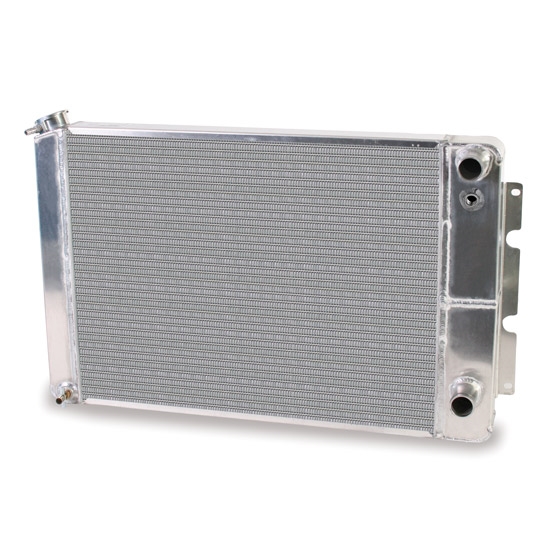

AFCO 1967-69 Camaro/Firebird LS Swap Radiator
AFCO 1967-69 Camaro/Firebird LS Swap Radiator
AFCO 1967-69 Camaro/Firebird LS Swap Radiator
AFCO 1967-69 Camaro/Firebird LS Swap Radiator
VIDEO
AFCO 1967-69 Camaro/Firebird LS Swap Radiator

Click image to enlarge

Details

Reviews (0)

Q & A (2)

What's in the Box

Info

These LS conversion radiators are built with the correct inlet and outlet required for the engine swap. They are 100% TIG welded, 100% pressure tested and use no epoxy or sealers. These double pass radiators were designed for the rigors of racing, but we added the mounts to allow their superior design on the street. After all, there are more important things to be doing than installing your radiator - like enjoying your car on the road!

  • Uses the same tools to install your new radiator as you did to remove the old one
  • Factory fan shroud provisions on many models
  • Drain plugs included
  • Billet filler neck offers strength and higher quality appearance over stamped
  • TIG welded by skilled craftsmen in the USA
  • Inlets and outlets are positioned correctly for ease of flow
  • Inlet O.D.:  1 3/8"
  • Outlet O.D.:  1 3/8"

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.





Notes

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

Nova? Would this work on a 1970 Nova LS swap?

Jrstone55
Tennessee, USA
August 31, 2013

Nova? Would this work on a 1970 Nova LS swap?

Answers

September 03, 2013
Jason
Radiator number 10684251 carries the same overall dimensions as the big block application for the 68-74 Nova. For fit you would need to relocate the cushions on your radiator support to the outer locations and the same with the top. If wanting to use the small block Nova shroud it would require modification to matching dimensions as the new radiator.
1 answers

Does this come with double fans or what part number are the fans. . How many horses is the radiator good for.

Gerald
March 07, 2016

Does this come with double fans or what part number are the fans. . How many horses is the radiator good for.

Answers

March 09, 2016
Eric
Expert
You can select the fan option in the drop down menu. For the size of this radiator I would suggest a single electric fan since it is small enough of a radiator that the dual fans have to be extremely small and do not produce as much airflow as the single fan. There is no horsepower rating on this radiator but it does seem to work well in most street applications. Cooling capacity is equal to or better than a 4 core copper radiator.
Page 1 of 1
