AFCO 1955-59 Chevy Truck Aluminum Radiator, Chevy Engine

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Downflow
Sold in Quantity:
Each
Row Quantity:
Dual
Inlet Location:
Centered
Finish:
-
Outlet Location:
Lower Right
Color:
Black
Radiator Style:
Single Pass
Cooling Fan:
-
Shroud finish:
-
MFG. Part #:
-
Transmission Cooler:
-
Shroud:
-
Overall Height:
25.50
Overall Width:
-
Overall Thickness:
3.00
Inlet Size:
1.50
Core Height:
20.06
Core Width:
21.75
Core Thickness:
2.25
Tube Size:
-
Filler Neck Height:
1.00
Notes
1/4" NPT fittings for transmission cooler. 1/4" NPT fitting for drain plug. 2.38" wide mounting flange on both sides.

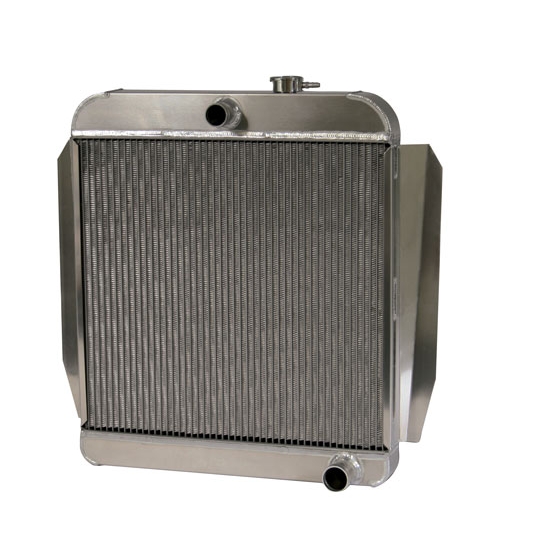

AFCO 1955-59 Chevy Truck Aluminum Radiator, Chevy Engine
AFCO 1955-59 Chevy Truck Aluminum Radiator, Chevy Engine
VIDEO
AFCO 1955-59 Chevy Truck Aluminum Radiator, Chevy Engine

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

  • 100% Aluminum construction (no epoxy)
  • Furnace brazed core
  • Tanks are made of .080” 3003 aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory pressure-tested
  • Filler necks feature screw-in bleed – won't crack or leak with age

Instructions (PDF)

NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

Notes

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Will this radiator fit my '62 Impala? Radiator PN 10680137-S-SS-Y Diminisions are just a little off. My existing Rad measures approx 20 H x 24W not including the flanges on the side.

tjf63
Redding, Ca
May 22, 2013

Will this radiator fit my '62 Impala? Radiator PN 10680137-S-SS-Y Diminisions are just a little off. My existing Rad measures approx 20 H x 24W not including the flanges on the side.

Answers

May 22, 2013
EricM
Overall dimensions on the pickup radiator are 21.75 wide by 25.50 tall. We do list a radiator for yhour ’62 Impala under number 10680103 and the dimensions are considerably different at 25.94 wide and 20.0” tall overall. You may want to compare this radiator to your application for a closer fit.
