AFCO 1949-53 Ford Aluminum Radiator, Ford Engine

Price: $285.99 - $1,124.99
Sale: $235.99 - $1,124.99
Up to $50.00 off
AFCO '49-'53 Ford Aluminum Radiator, Ford Engine
Item #:
10681164
Item Details:
*Please see Notes tab for index abbreviations.*

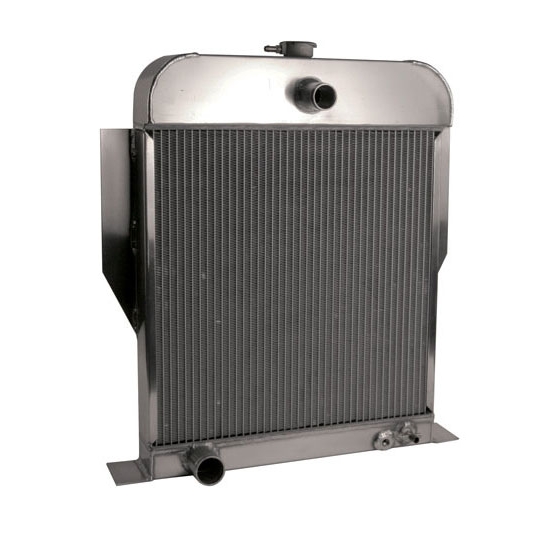

AFCO 1949-53 Ford Aluminum Radiator, Ford Engine
Click image to enlarge Click image to enlarge




When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

  • 100% Aluminum construction (no epoxy)
  • Furnace brazed core
  • Tanks are made of .080” 3003 aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory pressure-tested
  • Filler necks feature screw-in bleed – won't crack or leak with age
  • Overall Height:  24"
  • Overall Width:  18-1/2"
  • Upper neck:  1-1/2"
  • Lower neck:  1-3/4"

Instructions (PDF)

NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

  • 10681164-S-SB-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10681164-S-SS-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10681164-P-SB-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10681164-B-NA-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    No
    Transmission Cooler
    No
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10681164-P-NA-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10681164-B-SB-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10681164-P-SS-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10681164-S-SP-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10681164-B-SS-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10681164-B-SP-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10681164-S-NA-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10681164-P-SP-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    24.060"
    Overall Thickness
    4.000"
    Core Width
    18.500" (18 1/2")
    Core Height
    17.880"
    Core Thickness
    2.250" (2 1/4")
    Inlet Location
    Centered
    Outlet Location
    Lower Left
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10681164-F-SB-N
    MFG. Part #
    81164-F-SB-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    17.790"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Painted Black
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator w/o trans cooler.
  • 10681164-F-SP-N
    MFG. Part #
    81164-F-SP-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    17.790"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Polished
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator w/o trans cooler.
  • 10681164-F-SS-N
    MFG. Part #
    81164-F-SS-N
    Overall Width
    18.500" (18 1/2")
    Overall Height
    17.790"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Satin
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator w/o trans cooler.
When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished
    F = Fan & shroud only

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black
