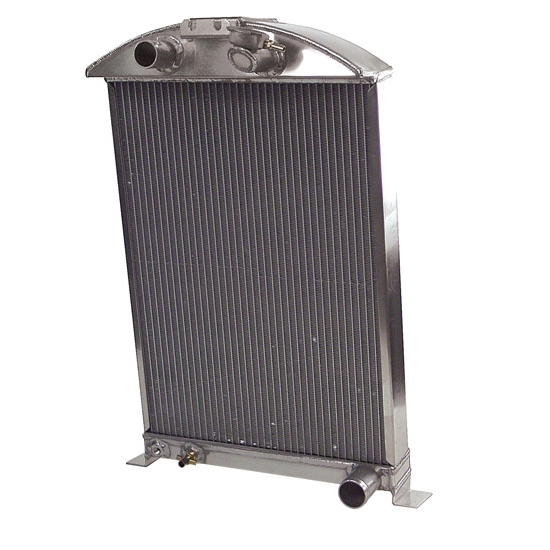

AFCO 1933-34 Ford Car Aluminum Radiator, Chevy Engine

SAME DAY SHIPPING!

Specs
Material Type:
Aluminum
Overall Height:
29.00
Overall Width:
17.00
Color:
Black
Transmission Cooler:
-
Tube Style:
Downflow
Sold in Quantity:
Each
Overall Thickness:
-
Row Quantity:
Dual
Finish:
-
Inlet Location:
Upper Left
Inlet Size:
1.50
Outlet Location:
Lower Right
Outlet Size:
1.75
Core Height:
20.00
Core Width:
16.50
Core Thickness:
2.25
Filler Neck Height:
2.50
Shroud:
-
Radiator Style:
Single Pass
Cooling Fan:
Single
MFG. Part #:
-
Garage Sale:
No
Notes
1/4" NPT fittings for transmission cooler. 1/4" NPT fitting for drain plug. 1.50" mounting feet on both sides.

Share by Email

From
To

Click image to enlarge



X

Details

Reviews

Q & A

What's in the Box

When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

  • 100% Aluminum construction (no epoxy)
  • Furnace brazed core
  • Tanks are made of .080” 3003 aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory pressure-tested
  • Filler necks feature screw-in bleed – won't crack or leak with age
  • 17” Core Width
  • 3”Core Thickness
  • 27” Overall Height (from bottom of bottom tank to top of top tank)
  • 20.25" Overall Width
  • 5° Layback

Instructions (PDF)

NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

Notes

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Item Details

*Please see Notes tab for index abbreviations.*

You may also be interested in:

Radiator Rubber Pads
                        This set of radiator pads consists of two pieces of 1/4" thick rubber. One set provides enough rubber for all four brackets in our radiator mount bracket kit 91734700-STL.

AFCO Aluminum Radiators 1933-34 Ford Car


When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

These radiators can cruise the fairgrounds with a high horsepower Big Block in the heat of the summer. No problem.

NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.
