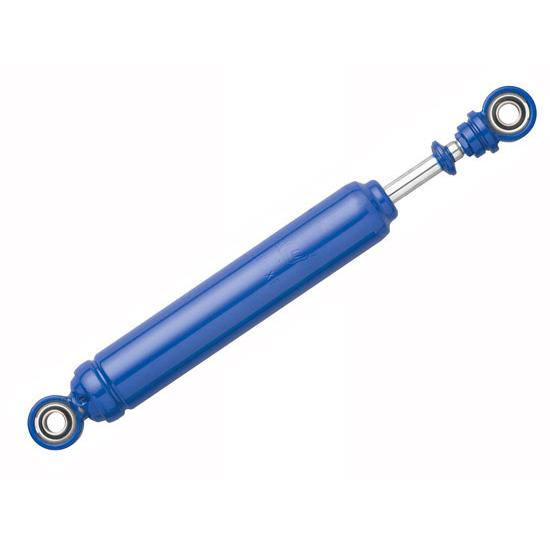

AFCO 1564 S Series Steel Small Body Twin-Tube Shock-6 In, Comp 4/Reb 4
AFCO 1564 S Series Steel Small Body Twin-Tube Shock-6 In, Comp 4/Reb 4

AFCO 1564 S Series Steel Small Body Twin-Tube Shock-6 In, Comp 4/Reb 4

1 Review | 0 Answered Questions
In Stock
Ships FREE
AFCO 1564 S Series Steel Small Body Twin-Tube Shock-6 In, Comp 4/Reb 4
Image Gallery
AFCO 1564 S Series Steel Small Body Twin-Tube Shock-6 In, Comp 4/Reb 4
AFCO 1564 S Series Steel Small Body Twin-Tube Shock-6 In, Comp 4/Reb 4
Zoomed In Image
Part # 1061564
$99.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

MFG. Part #:
1564
Shock Type:
Twin Tube
Coil-Over Compatible:
Yes
Shock Body Material:
Steel
Shock Body Size:
Small Body
Shock Body Type:
Smooth
Shock Stroke:
6
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Extended Length:
17.75"
Compressed Length:
11.45"
Body Diameter:
1.65"
Valve Positions:
4 compression - 4 rebound
Finish:
Painted
Bushing Material:
Steel
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

AFCO S-Series Steel Sealed Body Twin-Tube Shocks offer performance, durability and value. With the identical internal components as the aluminum shocks, these shocks deliver the AFCO performance advantage lap after lap.

  • Can be mounted in any position without affecting performance
  • Mount the shocks "up-side-down" to save unsprung weight and give your suspension quicker reaction
  • Compression and rebound valving numbers remain the same whether the shock is right-side up or upside down
  • Coilover shocks use an integral groove and available snap ring (not included) to provide easy installation of coilover hardware
  • Welded eye ring for superior strength
  • Replaceable bearing for long life
  • 5/8" shaft prevents flexing
  • A wide selection of split valves and standard valves are available to fit a variety of applications and needs
  • Durable gloss powder coat finish for long life
  • Compressed Length: 11.45"
  • Extended Length: 17.75"
  • 1.64" O.D. Body

Item Details

Comp. Length: 11.45"
Extended Length: 17.75"
Comp/Rebound: 4/4

Application

Small Body Popular Applications:

  • Modified Lites
  • Dwarf Cars
  • Micros

The small body offers substantial weight savings as well as added clearance for suspension hardware.
