AFCO 1563-1 15 Series Steel Small Twin-Tube Shock-6 Inch, Comp 3/Reb 1

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Finish:
Painted
Shock Type:
Twin Tube
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Bushing Material:
Steel
Shock Stroke:
6
Shock Body Type:
Smooth
Shock Body Size:
Small Body
MFG. Part #:
1563-1
Valve Positions:
3 compression - 1 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Extended Length:
17.75
Compressed Length:
11.45
Shock Eyelet Width:
.625
Body Diameter:
1.65
Bolt Hole Circle:
.500

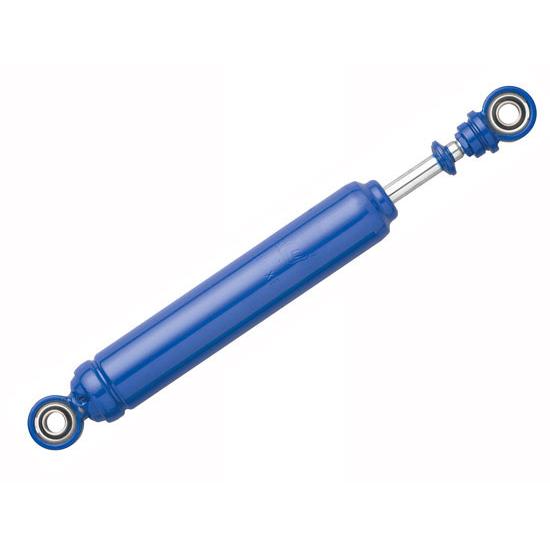

AFCO 1563-1 15 Series Steel Small Twin-Tube Shock-6 Inch, Comp 3/Reb 1

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCO S-Series Steel Sealed Body Twin-Tube Shocks offer performance, durability and value. With the identical internal components as the aluminum shocks, these shocks deliver the AFCO performance advantage lap after lap.

  • Can be mounted in any position without affecting performance
  • Mount the shocks "up-side-down" to save unsprung weight and give your suspension quicker reaction
  • Compression and rebound valving numbers remain the same whether the shock is right-side up or upside down
  • Coilover shocks use an integral groove and available snap ring (not included) to provide easy installation of coilover hardware
  • Welded eye ring for superior strength
  • Replaceable bearing for long life
  • 5/8" shaft prevents flexing
  • A wide selection of split valves and standard valves are available to fit a variety of applications and needs
  • Durable gloss powder coat finish for long life
  • Compressed Length: 11.45"
  • Extended Length: 17.75"
  • 1.64" O.D. Body

Item Details

Comp. Length: 11.45"
Extended Length: 17.75"
Comp/Rebound: 3/1

Application

Small Body Popular Applications:

  • Modified Lites
  • Dwarf Cars
  • Micros

The small body offers substantial weight savings as well as added clearance for suspension hardware.
