Afco 1495-3 14 Series Fixed Bearing Shock, 9 Inch, Comp 5/Reb 3

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Shock Type:
Twin Tube
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Shock Stroke:
9
Shock Body Type:
Smooth
Shock Body Size:
Small Body
MFG. Part #:
1495-3
Valve Positions:
5 compression - 3 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Extended Length:
23.50
Compressed Length:
14.75
Shock Eyelet Width:
.625
Body Diameter:
2.00
Bolt Hole Circle:
.500

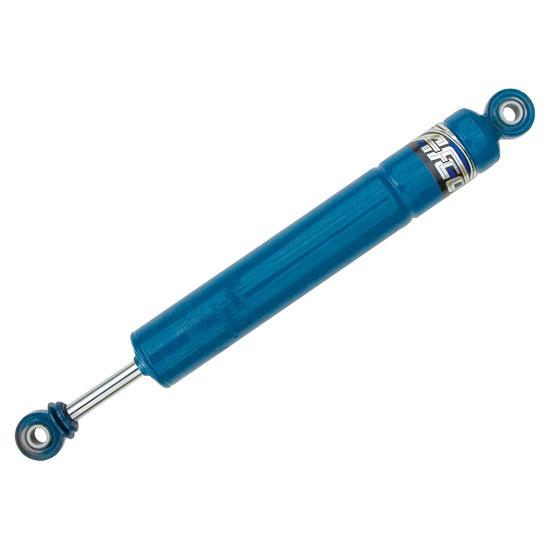

Afco 1495-3 14 Series Fixed Bearing Shock, 9 Inch, Comp 5/Reb 3

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.

AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.  The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.

  • Sealed body
  • Twin-Tube design
  • Can be used with or without coilovers
  • Can be mounted upside-down for reduced unsprung weight
  • Compressed Length: 14.75"
  • Extended Length: 23.50"
  • Stroke: 9"

When youre ready to win, we have the winning shock!

Dirt Modified 4-Link Twin Tube Shock Chart (Link)

Item Details

Compressed Length: 14.75"
Extended Length: 23.50"
Comp. / Rebound: 5/3

Application

  • Dirt Modifieds
  • Recommended 4-Link Twin Tube Shocks-Sealed Body
    • Left Rear (w/Spring Behind)
      • Rough Track Condition
