AFCO 1494 14 Series Fixed Bearing Coilover Shock, 9 Inch, Comp 4/Reb 4

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Shock Type:
Twin Tube
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Shock Stroke:
9
Shock Body Type:
Smooth
Shock Body Size:
Small Body
MFG. Part #:
1494
Valve Positions:
4 compression - 4 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Extended Length:
23.50
Compressed Length:
14.75
Shock Eyelet Width:
.625
Body Diameter:
2.00
Bolt Hole Circle:
.500

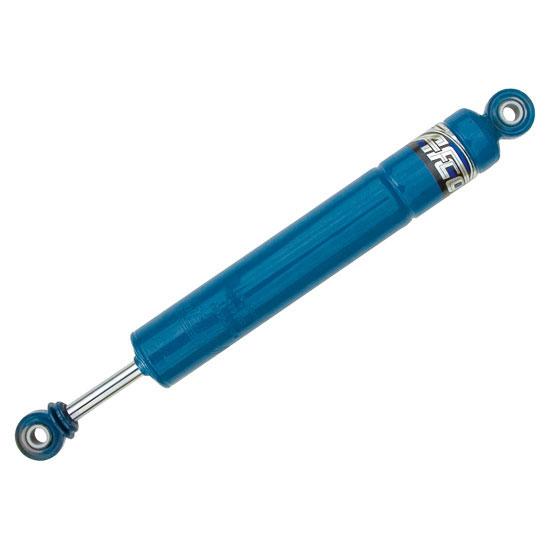

AFCO 1494 14 Series Fixed Bearing Coilover Shock, 9 Inch, Comp 4/Reb 4

Click image to enlarge

Details

Reviews (1)

Q & A (0)

What's in the Box

Info

AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.

AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.  The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.  When youre ready to win, we have the winning shock!

  • Sealed body
  • Twin-Tube design
  • Can be used with or without coilovers
  • Can be mounted upside-down for reduced unsprung weight
  • Compressed Length: 14.75"
  • Extended Length: 23.50"
  • Stroke: 9"

Dirt Modified Swing Arm Twin Tube Shock Chart (Link)

Dirt Modified 4-Link Twin Tube Shock Chart (Link)

Dirt Street and Super Stock Shock Chart (Link)

Pavement Street and Super Stock Shock Chart (Link)

Item Details

Compressed Length: 14.75"
Extended Length: 23.50"
Comp. / Rebound: 4/4

Application

  • Dirt Modifieds
  • Recommended Swing Arm Twin Tube Shocks-Sealed Body
    • Left or Right Rear
      • Base Track Condition
  • Recommended 4-Link Twin Tube Shocks-Sealed Body
    • Right Rear Spring Ahead
      • Base, Rough Track Condition
    • Right Rear (w/Spring Ahead)
      • Base Track Condition
  • Street Stocks and Super Stocks - Dirt/Pavement
  • Recommended Dirt Shocks - Economy Twin Tube
    • Left or Right Rear
      • Camaro Metric Frame
  • Recommended Pavement - Economy Twin Tube
    • Left Rear
      • Camaro Frame
    • Right Rear
      • Camaro, Metric Frame
