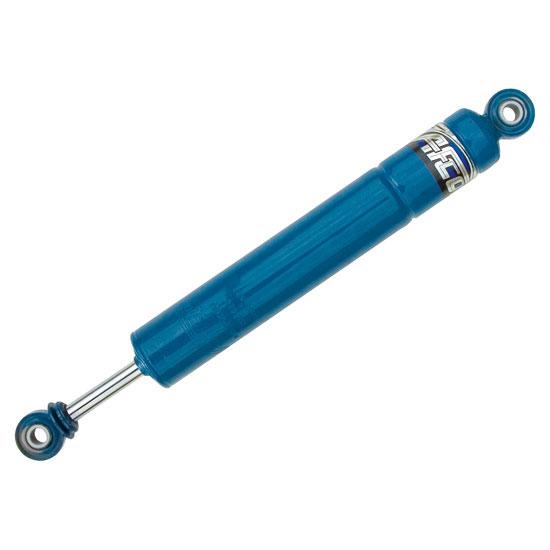

AFCO 1475 Series Fixed Bearing Sealed Body Shock, 7 Inch, Comp 5/Reb 5
AFCO 1475 Series Fixed Bearing Sealed Body Shock, 7 Inch, Comp 5/Reb 5

AFCO 1475 Series Fixed Bearing Sealed Body Shock, 7 Inch, Comp 5/Reb 5

1 Review | 2 Answered Questions
In Stock
Can Ship FREE
AFCO 1475 Series Fixed Bearing Sealed Body Shock, 7 Inch, Comp 5/Reb 5
Image Gallery
AFCO 1475 Series Fixed Bearing Sealed Body Shock, 7 Inch, Comp 5/Reb 5
AFCO 1475 Series Fixed Bearing Sealed Body Shock, 7 Inch, Comp 5/Reb 5
Zoomed In Image
Part # 1061475
$79.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

MFG. Part #:
1475
Shock Type:
Twin Tube
Coil-Over Compatible:
Yes
Shock Body Material:
Steel
Shock Body Size:
Small Body
Shock Body Type:
Smooth
Shock Stroke:
7
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Extended Length:
19.50"
Compressed Length:
12.75"
Body Diameter:
2.00"
Valve Positions:
5 compression - 5 rebound
Finish:
Painted
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Material Type:
Steel

Info

AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.

AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.  The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.  When youre ready to win, we have the winning shock!

  • Sealed bodyTwin-Tube design
  • Can be used with or without coilovers
  • Can be mounted upside-down for reduced unsprung weight
  • Compressed Length: 12.75"
  • Extended Length: 19.50"
  • Stroke: 7"

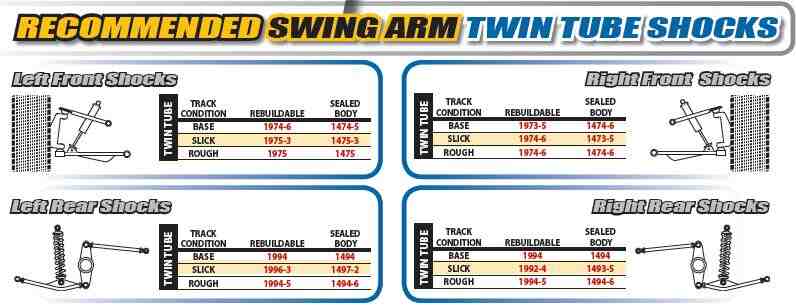

Dirt Modified Swing Arm Twin Tube Shock Chart (Link)

Dirt Modified 4-Link Twin Tube Shock Chart (Link)

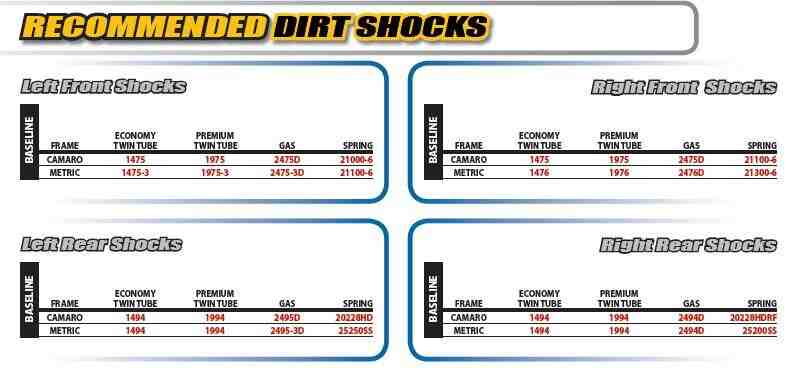

Dirt Street and Super Stock Shock Chart (Link)

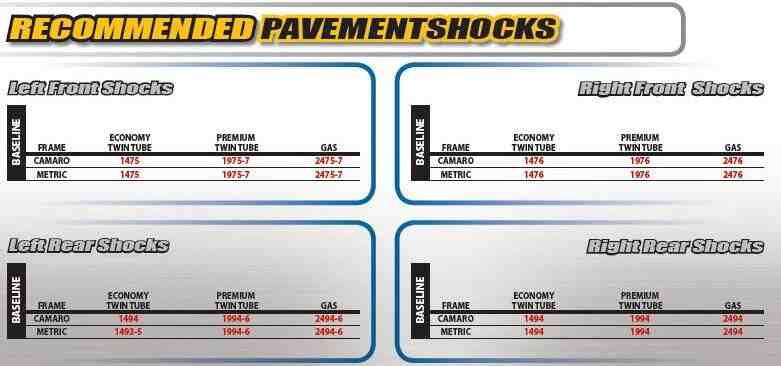

Pavement Street and Super Stock Shock Chart (Link)

Item Details

Comp. Length: 12.75"
Extended Length: 19.50"
Comp/Rebound: 5/5

Application

  • Dirt Modifieds
  • Recommended Swing Arm Twin Tube Shocks-Sealed Body
    • Left Front
      • Rough Track Condition
  • Recommended 4-Link Twin Tube Shocks-Sealed Body
    • Left or Right Front
      • Rough Track Condition
  • Street Stocks and Super Stocks - Dirt/Pavement
  • Recommended Dirt Shocks - Economy Twin Tube
    • Left or Right Front
      • Camaro Frame
  • Recommended Pavement - Economy Twin Tube
    • Left Front
      • Camaro, Metric Frame
