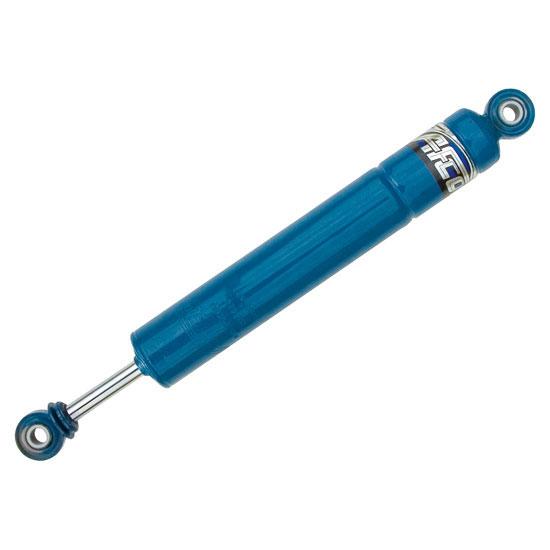

AFCO 1475-3 14 Series Fixed Bearing Sealed Shock-7 Inch, Comp 5/Reb 3

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Shock Type:
Twin Tube
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Shock Stroke:
7
Shock Body Type:
Smooth
Shock Body Size:
Small Body
MFG. Part #:
1475-3
Valve Positions:
5 compression - 3 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Extended Length:
19.50
Compressed Length:
12.75
Shock Eyelet Width:
.625
Body Diameter:
2.00
Bolt Hole Circle:
.500
AFCO 1475-3 14 Series Fixed Bearing Sealed Shock-7 Inch, Comp 5/Reb 3

Click image to enlarge

Details

Reviews (1)

Q & A (0)

What's in the Box

Info

AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.

AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.

The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.  When youre ready to win, we have the winning shock!

  • Sealed bodyTwin-Tube designCan be used with or without coilovers
  • Can be mounted upside-down for reduced unsprung weight
  • Compressed Length: 12.75"
  • Extended Length: 19.50"
  • Stroke: 7"

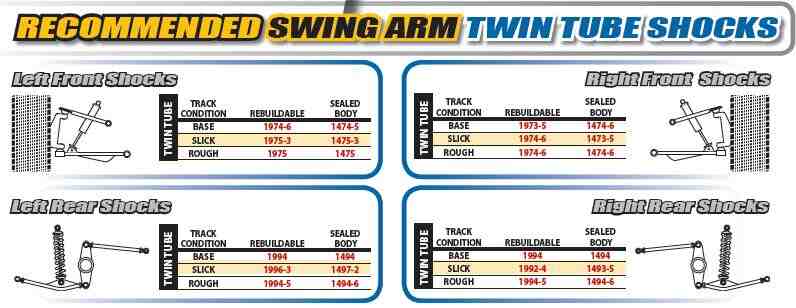

Dirt Modified Swing Arm Twin Tube Shock Chart (Link)

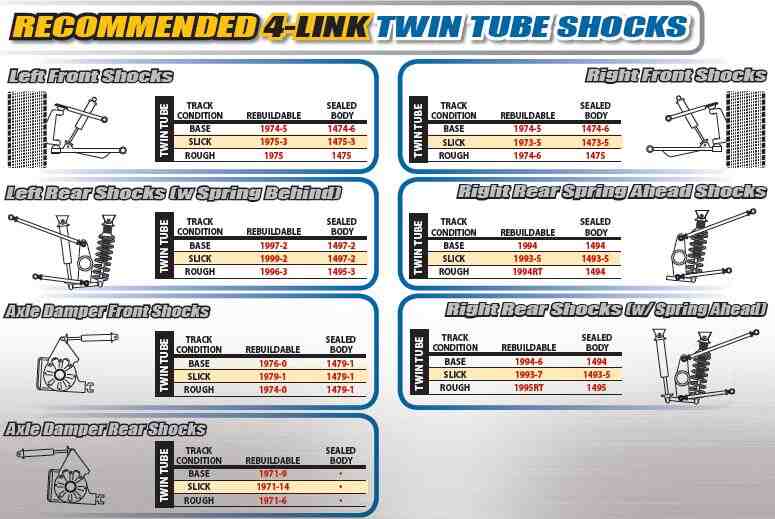

Dirt Modified 4-Link Twin Tube Shock Chart (Link)

Dirt Street and Super Stock Shock Chart (Link)

Item Details

Comp. Length: 12.75"
Extended Length: 19.50"
Comp/Rebound: 5/3

Application

  • Dirt Modifieds
  • Recommended Swing Arm and 4-Link Twin Tube Shocks-Sealed Body
    • Left Front
      • Slick Track Condition
  • Street Stocks and Super Stocks - Dirt
  • Recommended Dirt Shocks - Economy Twin Tube
    • Left Front
      • Metric Frame
