AFCO 1396-3T Aluminum Non-Adjustable Threaded Shock-9 In-Comp 6/Reb 3

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Finish:
Anodized
Shock Type:
Twin Tube
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Aluminum
Bushing Material:
Steel
Shock Stroke:
9
Shock Body Type:
Threaded
Shock Body Size:
Large Body
MFG. Part #:
1396-3T
Valve Positions:
6 compression - 3 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Extended Length:
24.25
Compressed Length:
15.32
Thread Length:
9.59
Shock Eyelet Width:
.625
Body Diameter:
2.17
Bolt Hole Circle:
.500

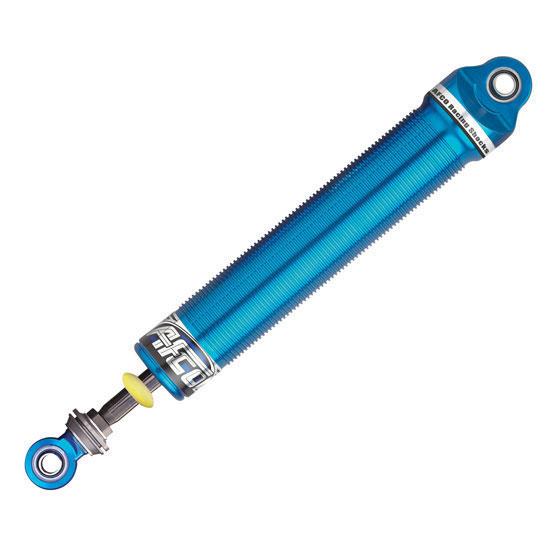

AFCO 1396-3T Aluminum Non-Adjustable Threaded Shock-9 In-Comp 6/Reb 3

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

  • Shim stack technology gives excellent consistnecy and repeatability
  • Twin tube design for best performance on slick, smooth tracks
  • Non-adjustable design for Late Model/ASA NASCAR Modified applications
  • Threaded aluminum body
  • 9" stroke

Late Model Swing Arm Twin Tube Shock Chart (Link)

Item Details

Compressed Length: 15.90"Extended Length: 24.90"Comp./Rebound: 6/3

Application

  • Coilover Applications
  • Dirt Late Model/Crate Late Model
  • Recommended Swing Arm & 4-Link Twin Tube Shocks
    • Left Rear
      • Slick Track Condition
