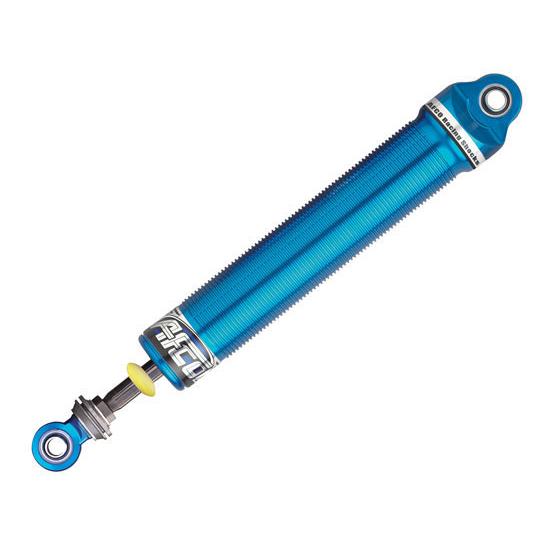

AFCO 1394-6T 13T Large Threaded Twin-Tube Shock, 9 Inch, Comp 4/Reb 6

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Finish:
Anodized
Shock Type:
Twin Tube
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Aluminum
Bushing Material:
Steel
Shock Stroke:
9
Shock Body Type:
Threaded
Shock Body Size:
Large Body
MFG. Part #:
1394-6T
Valve Positions:
4 compression - 6 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Extended Length:
24.25
Compressed Length:
15.32
Thread Length:
9.59
Shock Eyelet Width:
.625
Body Diameter:
2.17
Bolt Hole Circle:
.500
Notes
MADE TO ORDER
AFCO 1394-6T 13T Large Threaded Twin-Tube Shock, 9 Inch, Comp 4/Reb 6

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

Precise, consistent and dependable control is what makes the AFCO R-Series shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Their production system ensures that when you buy an AFCO shock, you have bought the best! Today, AFCO R-Series rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.

  • Built to the highest standards in the industry
  • In-house manufacturing means total control over production tolerances and quality
  • Shim stack technology gives excellent consistency and repeatablility
  • Twin tube design for best performance on slick, smooth tracks
  • Threaded aluminum body
  • 100% dyno tested, rebuildable, and revalvable
  • Compressed Length: 15.32"
  • Extended Length: 24.25"

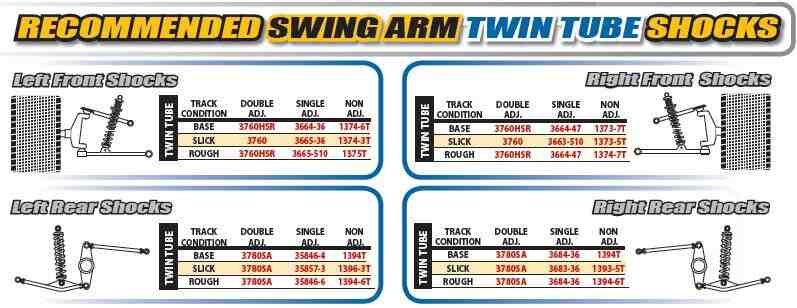

Late Model Swing Arm Twin Tube Shock Chart (Link)

Application

  • Coilover Applications
  • Dirt Late Model/Crate Late Model
  • Recommended Swing Arm Twin Tube Shocks
    • Left or Right Rear
      • Rough Track Condition
