AFCO 1276-4FB Large Twin-Tube Fixed Bearing Shock 7 Inch, Comp 6/Reb 4

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Shock Type:
Twin Tube
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Shock Stroke:
7
Shock Body Type:
Smooth
Shock Body Size:
Large Body
MFG. Part #:
1276-4FB
Valve Positions:
6 compression - 4 rebound
Hardware Included:
No
Coil-Over Compatible:
No
Extended Length:
19.50
Compressed Length:
12.75
Shock Eyelet Width:
.625
Body Diameter:
2.02
Bolt Hole Circle:
.500
Notes
Strong 5/8" shaft to prevent flexing

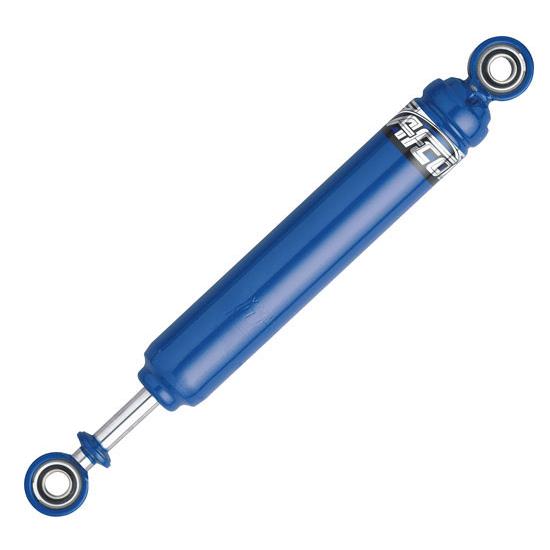

AFCO 1276-4FB Large Twin-Tube Fixed Bearing Shock 7 Inch, Comp 6/Reb 4

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing, non-coilover design. AFCO 12 Series fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.

The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.

  • 2.02" O.D. sealed body
  • Twin-tube design
  • Designed for non-coilover cars
  • Can be mounted upside-down for reduced unsprung weight
  • Strong 5/8" shaft to prevent flexing

Item Details

Compressed Length: 12.75"
Extended Length: 19.50"
Comp. / Rebound: 6/4
