AFCO 10430 Standard Steel Heim Rod End, 5/8-18 RH Male

Specs
Material Type:
Steel
Sold in Quantity:
Each
Threads:
RH Male
Thread Pitch:
5/8"-18
Center Hole to End of Shank:
2.66
MFG. Part #:
10430
Overall Length:
3.38
Thread Length:
1.65
Bushing Length:
.68
Bushing Diameter:
.68
Finish:
Zinc Plated

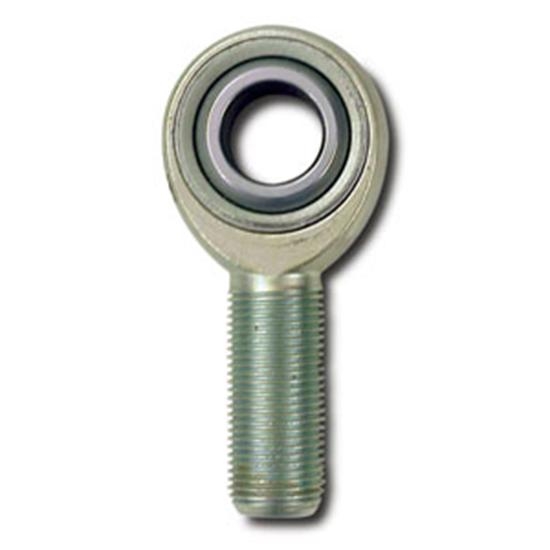

AFCO 10430 Standard Steel Heim Rod End, 5/8-18 RH Male

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

  • Excellent for use as a medium-duty suspension rod end
  • Ball - Case hardened steel hard chrome plated
  • Race - N/A
  • Body - Low carbon steel chromate treated
  • Max Static Load - 9,813 lbs.
