AFCO 1035 10 Series GM Street/Strip Rear Shock, Comp/Rebound: 3/5

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Shock Type:
Mono Tube
Upper Shock Mount:
Tie Bar
Shock Body Material:
Steel
Lower Shock Mount:
5/8 Inch Sleeve
Shock Body Type:
Smooth
Shock Body Size:
Large Body
MFG. Part #:
1035
Hardware Included:
Yes
Extended Length:
21.00
Compressed Length:
13.00
Arm Length:
8.00

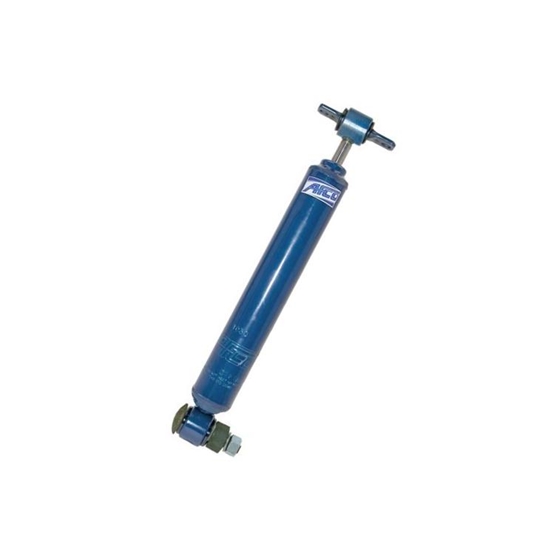

AFCO 1035 10 Series GM Street/Strip Rear Shock, Comp/Rebound: 3/5

Click image to enlarge

Details

Reviews (2)

Q & A (2)

What's in the Box

Info

AFCO has been in the racing shock business for over 20 years and has incorporated their technological knowledge into this K-Series street/strip shock. These 40/60 split percentage rear shocks allow the rear to squat which improves traction through weight transfer.

These split-valve shocks offer additional tuning capabilities over the standard valving.

Available Split Valves - Part # 1061035 is a 3 compression/5 rebound split valve shock for rear applications.  Soft compression accents weight transfer.  In circle track applications, used on the left rear, this shock tends to tighten corner exit handling.  Used on the right rear, this shock tends to tighten corner entry handling.

  • Compressed Length: 13.00"
  • Extended Length: 21.00"

Fits:

  • 1955-86 GM Full Midsize
  • 1963-86 Malibu, Chevelle, Monte Carlo, Cutlass and Rega
  • 1968-79 Nova
  • 1958-70 Impala
  • 1964-86 Chevell/Monte Carlo

Item Details

13" Comp., 21" Ext.
Comp/Rebound: 3/5 split valve

Application

Fits:

  • 1955-86 GM Full Midsize
  • 1963-86 Malibu, Chevelle, Monte Carlo, Cutlass and Regal
  • 1968-79 Nova
  • 1958-70 Impala
  • 1964-86 Chevell/Monte Carlo

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Cheeze
Verified Purchaser
Verified Reviewer
Detroit, MI

Much more than a circle track shock

July 28, 2015
We bought these to use in the full length 24 Hours of Lemons race at Autobahn Raceway. We spoke directly with Afco first and told them what we were doing and what our corner weights were. Based on our application they recommended these shocks for the solid rear axle. Afco gives thier distributors a cost advantage so it was less expensive to order from Speedway than right from the factory. We custom mounted them in a 2003 Ford Ranger. These came with new bolt on mounting hardware for the lower eyelet which made fabrication of new mounting locations much easier. Not overly racy looking so we didn't get dinged for having performance parts and we didn't notice any fading or leaking over a full 24 hour race. They performed well and kept us at the front of the pack. Well worth the cost!
Pros:
  • Cost
  • Mounting Hardware
  • Build Quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Upchurch Racing
Verified Purchaser
Cincinnati, OH

Instant Improvement

September 11, 2010
We put these shocks on the rear of our 1986 Monte Carlo Pure Stock and saw an instant improvement. The car had some struggles staying in the top 10 and the first night out with these shocks we picked up a 2nd place finish in the heat, and a 5th place in the feature.
Pros:
  • Smooth transition
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

afco 1035 and 1022 i have a figure 8 race car and i an trying to get a set of shock that will promote weight transfer. will the 1022 on the front and the 1035 on the back help me with that? i also have installed metic rear mount instead of ford mounts

afco
iowa
March 01, 2014

afco 1035 and 1022 i have a figure 8 race car and i an trying to get a set of shock that will promote weight transfer. will the 1022 on the front and the 1035 on the back help me with that? i also have installed metic rear mount instead of ford mounts

Answers

March 03, 2014
EricM
Yes the 1022 front and 1035 rear shocks will help promote front to rear weight transfer when picking up the throttle.
1 answers

are the afco shocks compatible with pro shocks street stock meaning can I put 1035 on l r and pro shocks everywhere eles

racer x
milford de
July 21, 2016

are the afco shocks compatible with pro shocks street stock meaning can I put 1035 on l r and pro shocks everywhere eles

Answers

July 22, 2016
Eric
Expert
Yes, it will work to use this Afco 1035 on your left rear with Pro Shocks on the rest of the car.
