AFCO 10270 Inner Tie Rod Adapter Bolt

Specs
Sold in Quantity:
Each

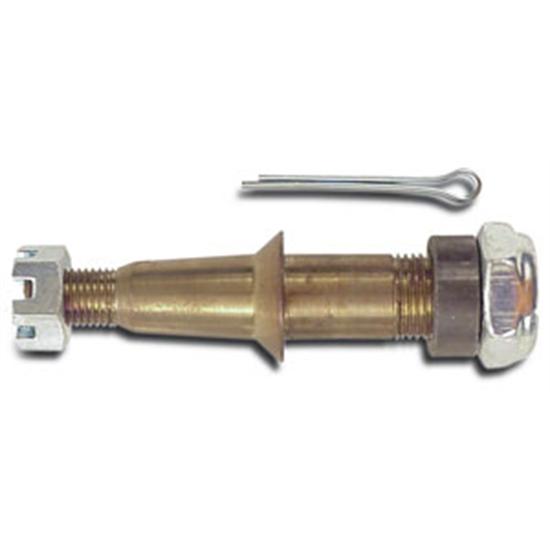

AFCO 10270 Inner Tie Rod Adapter Bolt

Click image to enlarge

Details

Reviews (1)

Q & A (3)

What's in the Box

Info

  • Adapter allows inner tie rod end to be replaced with heim rod end on rack & pinion
  • Stud is 5/8" diameter, 1-5/8" long with .780" shoulder
  • 1-1/2" taper per foot (.560" on small end of taper, .630" on large end)
  • 7 degree taper
  • Overall length is 3.55"
  • Complete with lock nuts and .320" thick bump steer spacer
  • Not for stock-style spindle use

Customer Reviews

Rated 3 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

azcarbum
Verified Purchaser

Tie Rod Adaptor. Great, but to Spendy.

August 25, 2014
Part is ideal with saftey of cotter-pin. Fits all my custom needs great. Only downfall, is its WAY to overpriced!!... No reason this item has to cost so much. If you want the best option for a 5/8" adaptor bolt, than this is it, and if its worth it for you... otherwise there are others that will do same job, just without the cotter-pin, for alot cheaper price. BK.
Pros:
  • cotter pin
Cons:
  • cost!!.. way to expensive!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Will this work with my stock 65 mustang v8 spindles which have .448 taper I'm doing a custom rack swap in my 65 mustang and I'm curious if I can use these on my car.

tytheguy1451
Utah
January 18, 2014

Will this work with my stock 65 mustang v8 spindles which have .448 taper I'm doing a custom rack swap in my 65 mustang and I'm curious if I can use these on my car.

Answers

January 20, 2014
EricM
These adapters have 1 1/2" per foot taper. They measure approximately .560" on the small end of the taper and .630" on the large end of the taper. Compare these specs to your spindles to verify fit.
1 answers

Dimensions Hello As far as I could calculate, it's seems to be the 7 degrees tapered area. Please correct me if I'm wrong. What would be the exact dimensions of the threaded shaft which suppose to accept the heim joint? Please provide length, diameter etc. engineering blueprint would be the best. Thank you

Maxim118
California
February 22, 2013

Dimensions Hello As far as I could calculate, it's seems to be the 7 degrees tapered area. Please correct me if I'm wrong. What would be the exact dimensions of the threaded shaft which suppose to accept the heim joint? Please provide length, diameter etc. engineering blueprint would be the best. Thank you

Answers

February 25, 2013
Jason
The Afco adapter bolt is 7 degree taper. The rod end side of stud is for 5/8" heim, 1-5/8" in length with .780" shoulder and comes with a .320" thick spacer. Over all length is 3.55"
1 answers

Will this work on a 68 gm a body with out a rack and pinion. Basically will it bolt up to my center link /drag link.

Mr goat
Oklahoma
September 20, 2016

Will this work on a 68 gm a body with out a rack and pinion. Basically will it bolt up to my center link /drag link.

Answers

September 21, 2016
Eric
Expert
The taper on this adapter is .560" on small end of taper and .630" on large end of the taper. Measure the taper of your center link to determine proper fitment.
Page 1 of 1
