A/C Hose Kit

Specs
Color:
Black
Sold in Quantity:
Kit
Hardware Included:
Yes
A/C Hose Kit

Click image to enlarge

Details

Reviews

Q & A

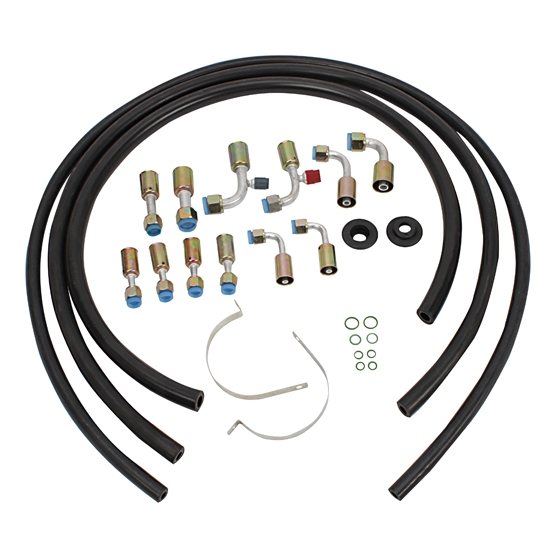

What's in the Box

These air conditioning hose kits include enough hose and fittings to allow a normal installation in applications without bulkhead fittings.

  • (2) Band Clamps
  • (4) AN6 Straight
  • (1) AN8 Straight
  • (1) AN10 Straight
  • (2) AN6 90 Degree
  • (1) AN8 90 Degree
  • (1) AN10 90 Degree
  • (1) AN8 90 Degree with Service Port
  • (1) AN10 90 Degree with Service Port
  • (4) #6 O-Rings
  • (2) #8 O-Rings
  • (2) #10 O-Rings
  • (2) Grommets
  • 6 ft #6 Hose
  • 5 ft #8 Hose
  • 4 ft #10 Hose



Fittings will need to be crimped at your local shop.

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

mrturdhurder69
mo

worked good

September 19, 2013
was easy to install. Had a little trouble finding a ac shop to crip hose. Thats not the AC line and fitting fault. Other than that worked great..
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Capn' Clay
Verified Purchaser
Garlic Town, California

Great Kit!

July 24, 2010
Exactly what I needed for my '34 Ford Coupe. Just enough hose and even a couple extra fittings.
Pros:
  • Everything needed
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

Are the fittings o-ring type or flare type? I am putting A/C in a 1966 Mustang with a Sandan Comp. The fittings on the comp. are o-ring type. The rest of the fittings on the cond. drier, & evaperator are flare type. Do you sale the fittings to do this? Pl

Reggie
Palmyra, Missouri 63461
May 20, 2011

Are the fittings o-ring type or flare type? I am putting A/C in a 1966 Mustang with a Sandan Comp. The fittings on the comp. are o-ring type. The rest of the fittings on the cond. drier, & evaperator are flare type. Do you sale the fittings to do this? Pl

Answers

May 23, 2011
John
This A/C hose kit utilizes o-ring pilot fittings which are the standard in air conditioning and HVAC systems. Contents of the kit are as follows:1- #6 45 degree fitting, 1- #8 45 degree fitting, 4- #6 90 degree fittings, 2- #10 90 degree fittings, 1- #8 90 degree fitting w/ svc. port (134a kits only), 1- #10 90 degree fitting w/ svc. port (134a kits only), 1- #6 90 degree bulkhead, 1- #10 90 degree bulkhead, 6 ft. #6 A/C hose, 4 ft. #8 A/C hose, and 5 ft. #10 A/C hose. In the case of the need for flare fittings for A/C systems you may want to contact Aeroquip or Hot Rod Air to see if they are manufactured or the options available.
1 answers

My olds ac system used an orifice tube in the hose.will I need an orifice tube for this kit?If so ware does it install on this ac hose kit? (Note) kit is being used in a 87 olds cutlass with a ls swap and useing a sandal 508 compressor.

Mr lsx
Thibodaux la
June 24, 2015

My olds ac system used an orifice tube in the hose.will I need an orifice tube for this kit?If so ware does it install on this ac hose kit? (Note) kit is being used in a 87 olds cutlass with a ls swap and useing a sandal 508 compressor.

Answers

June 24, 2015
Zach
Expert
I'm sorry to say that these hoses do not accept an orifice tube. You would need to get a different hose kit that allows for use of the orifice tube.
Page 1 of 1
